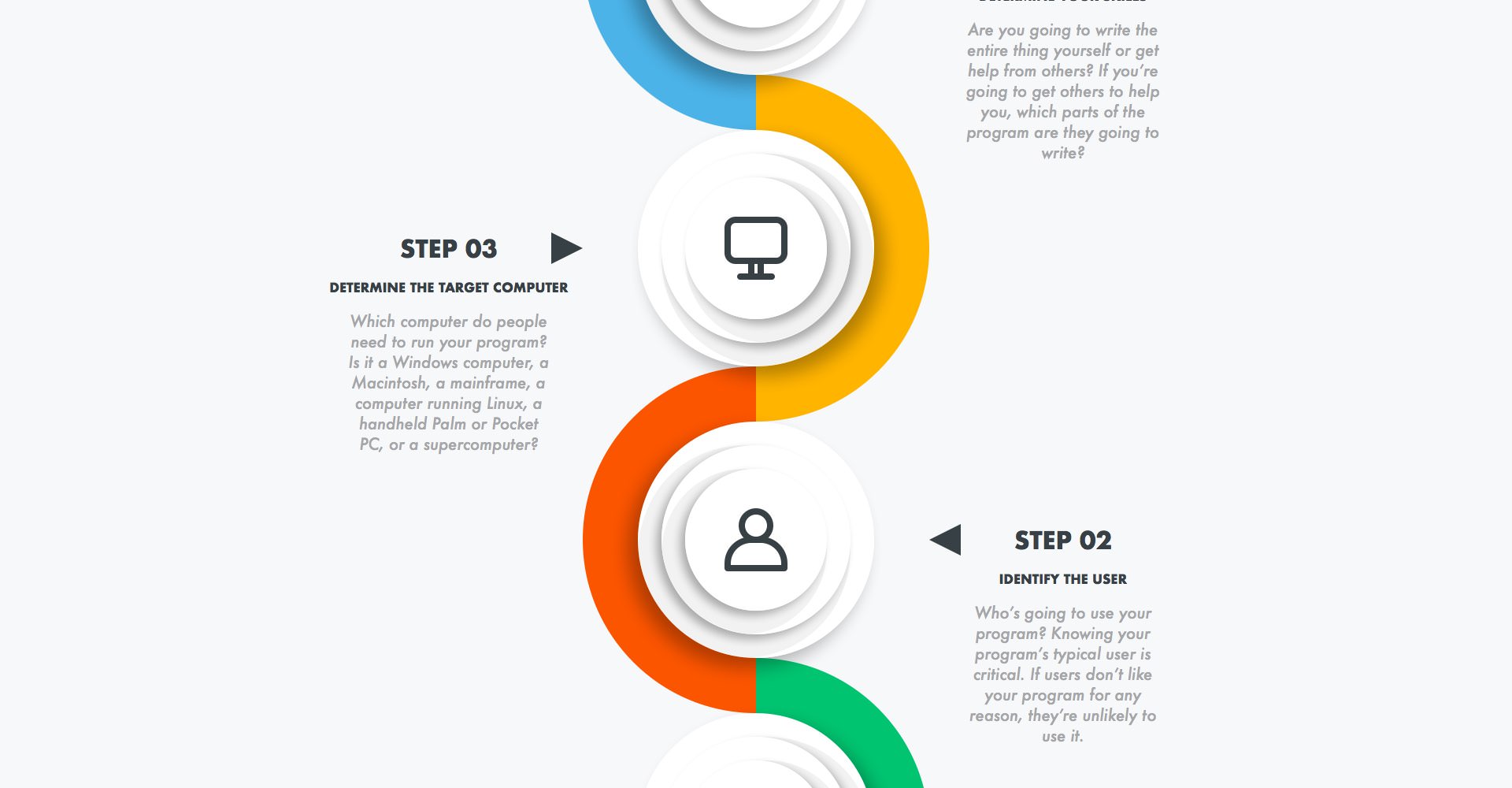

Create a Vertical Infographic

In the following tutorial you will learn how to create a Four Steps Vertical Infographic in Picta Graphic for iPhone.

For starters, you will learn how to set up a simple grid and how to create a set of pixel-perfect shapes. Using basic vector shape building techniques and some basic Effects attributes, you will learn to create the concentric white circles.

Taking full advantage of the Layers panel, you will learn how to easily multiply and adjust content from your document. Moving on, you will learn how to create four line icons.

Finally, you will learn how to add a bunch of text and a simple background for your final design.

Step 1

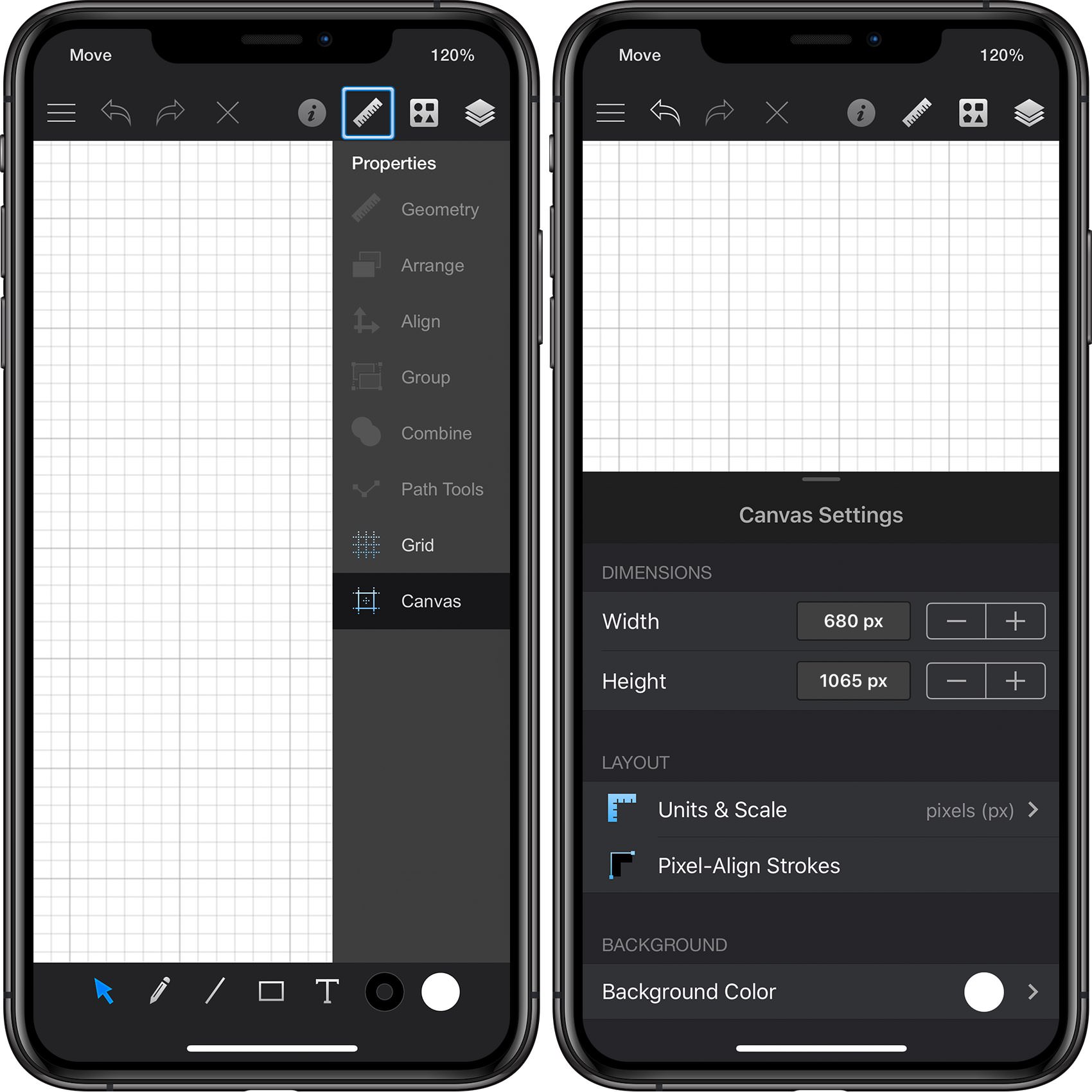

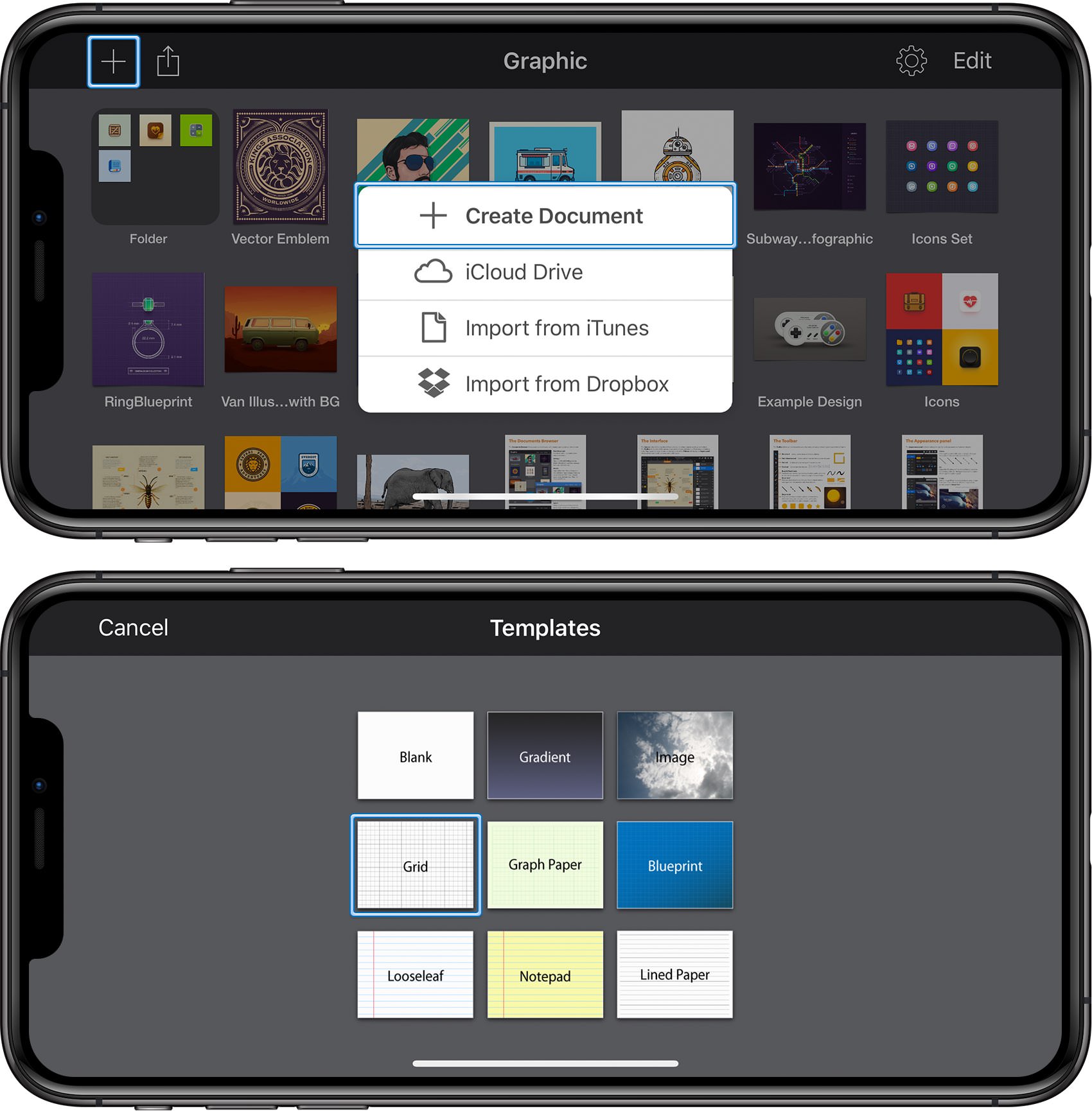

Start by tapping the plus button from the top-left corner of your screen to create a new document. Tap the Create Document button and then choose the Grid document style.

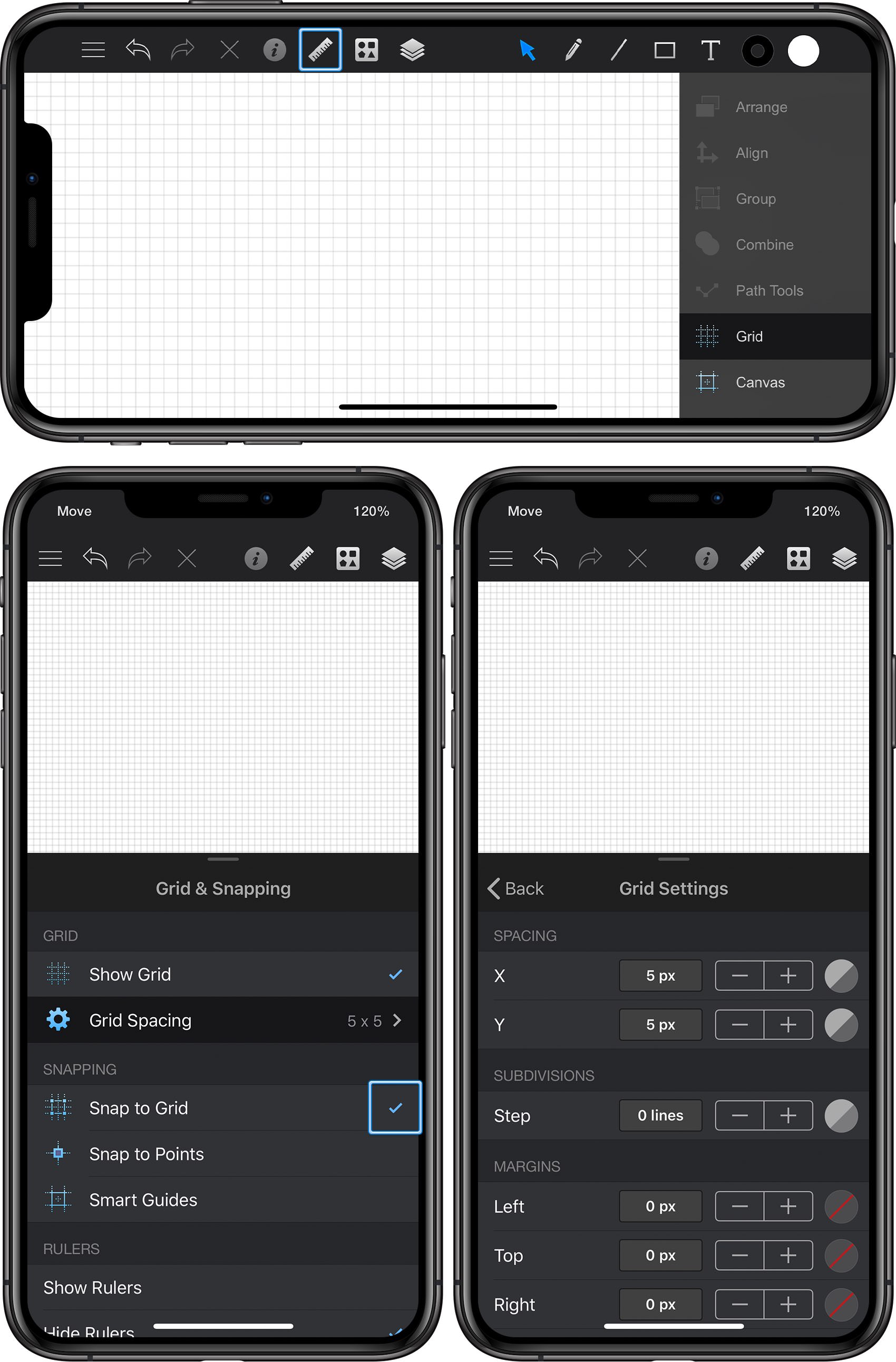

Focus on the right side of the Titlebar, tap that ruler icon to open the Properties panel and then tap the Canvas pane.

Set the Width to 680 px and the Height to 1065 px, select Pixels for the base unit, and be sure that the Pixel-Align Strokes feature is disabled. When this setting is enabled, stroked objects are offset slightly to ensure that the stroke is drawn aligned to the pixel grid which guarantees a crisp look.

Re-open the Properties panel and this time tap the Grid pane.

Make sure that the Snap to Grid feature is enabled and keep in mind that this is where you should come whenever you wish to enable or disable the grid or the Snap to Grid. Finally, open the Grid Spacing pane, enter 5 px in both Spacing boxes and 0 lines in the Subdivisions box.

Step 2

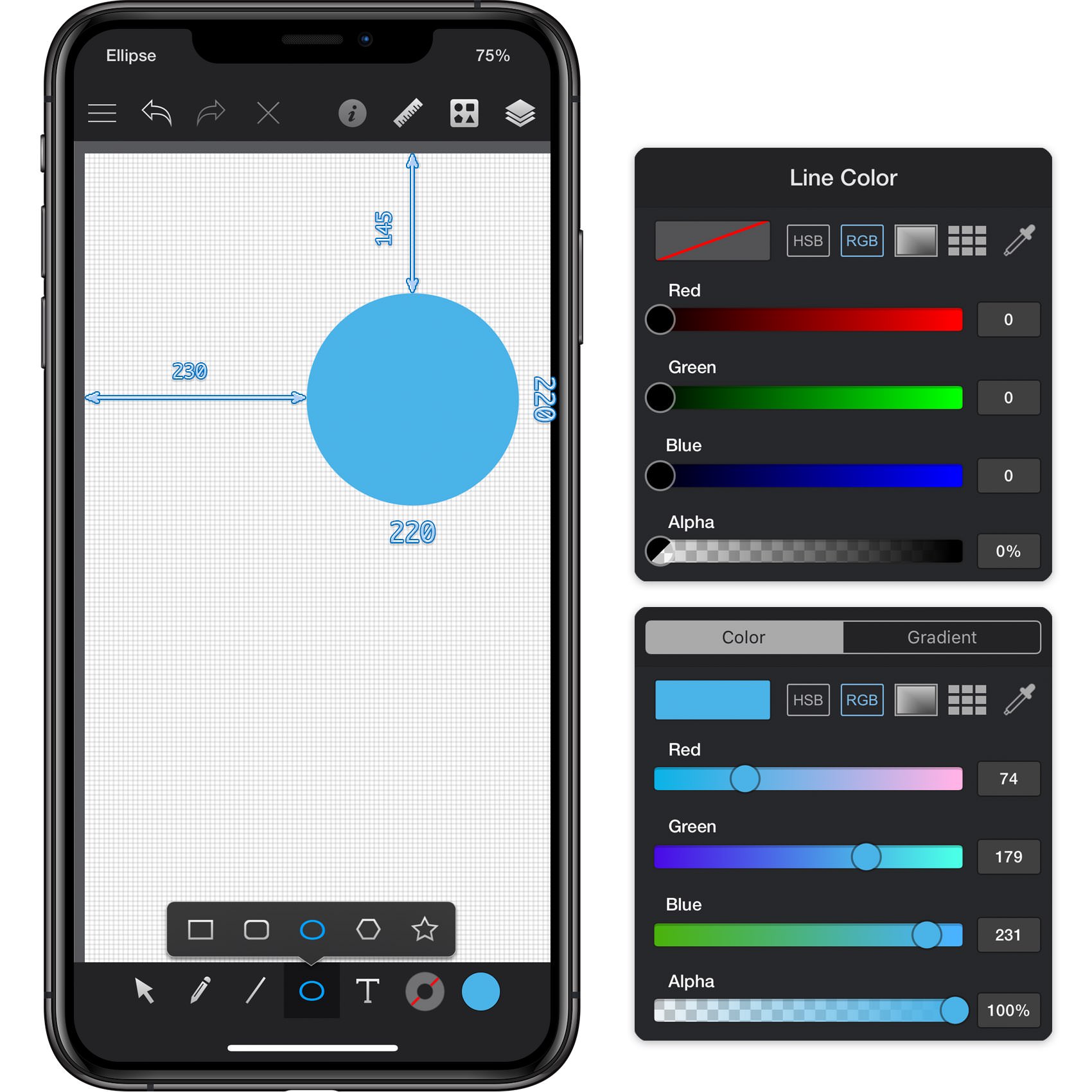

Focus on the Toolbar and tap the Line color well. Drag the Alpha slider to 0% to make your line invisible. Tap the Fill color well and replace the existing color with R=74 G=179 B=231.

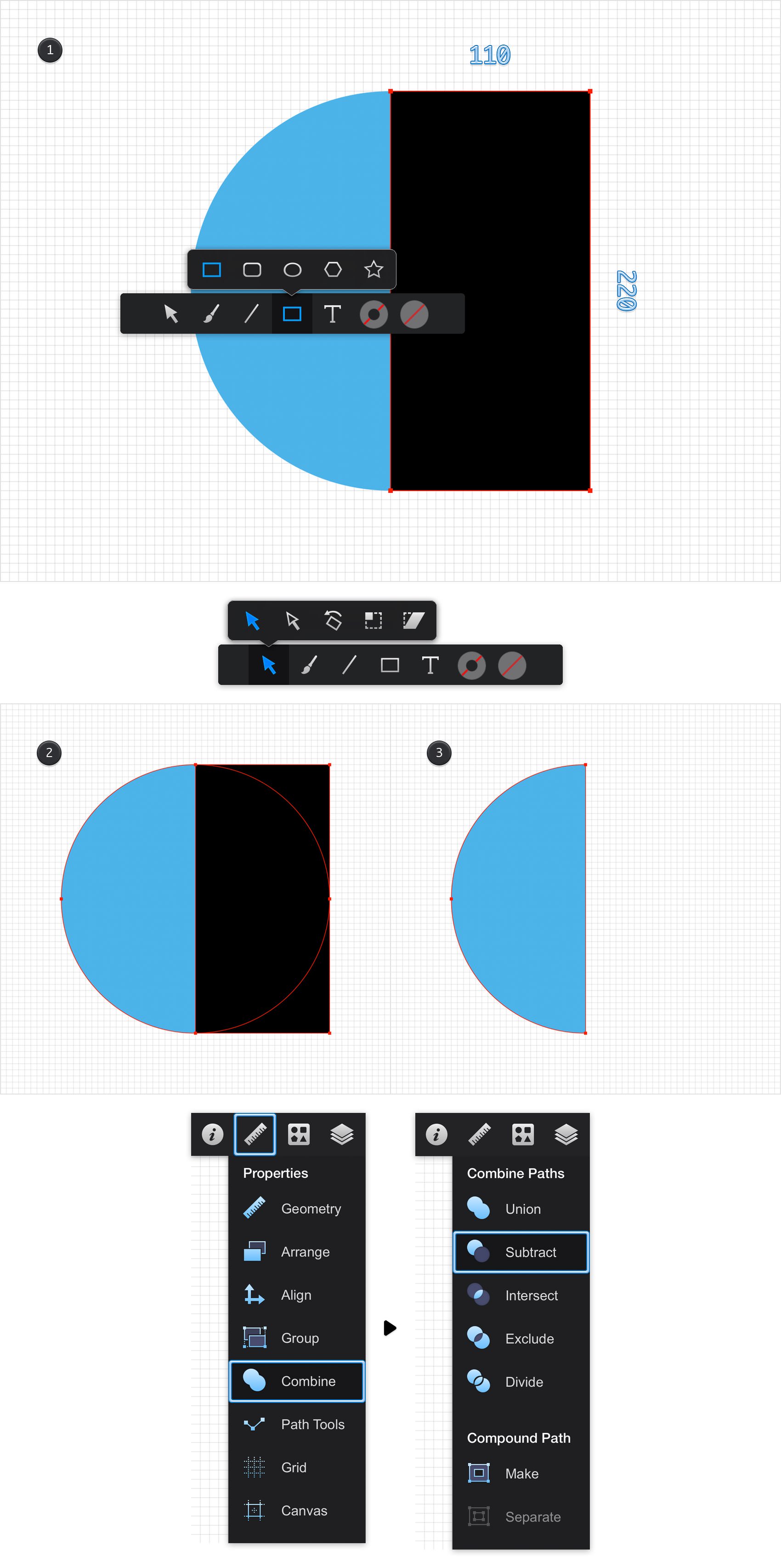

Pick the Ellipse Tool, focus on your canvas and create a 220 px circle. Tap and drag, and then tap and hold with a second finger to easily create a circle. Using the Move Tool, select your shape and place it exactly as shown in the following image (X: 340 px Y: 255 px).

Step 3

Focus on your Toolbar and replace the existing Fill color with black (R=0 G=0 B=0). Using the Rectangle Tool, create a 110 x 220 px shape and place it as shown in the first image.

Pick the Move Tool and select both shapes. Open the Combine pane from the Properties panel and tap the Subtract command.

Step 4

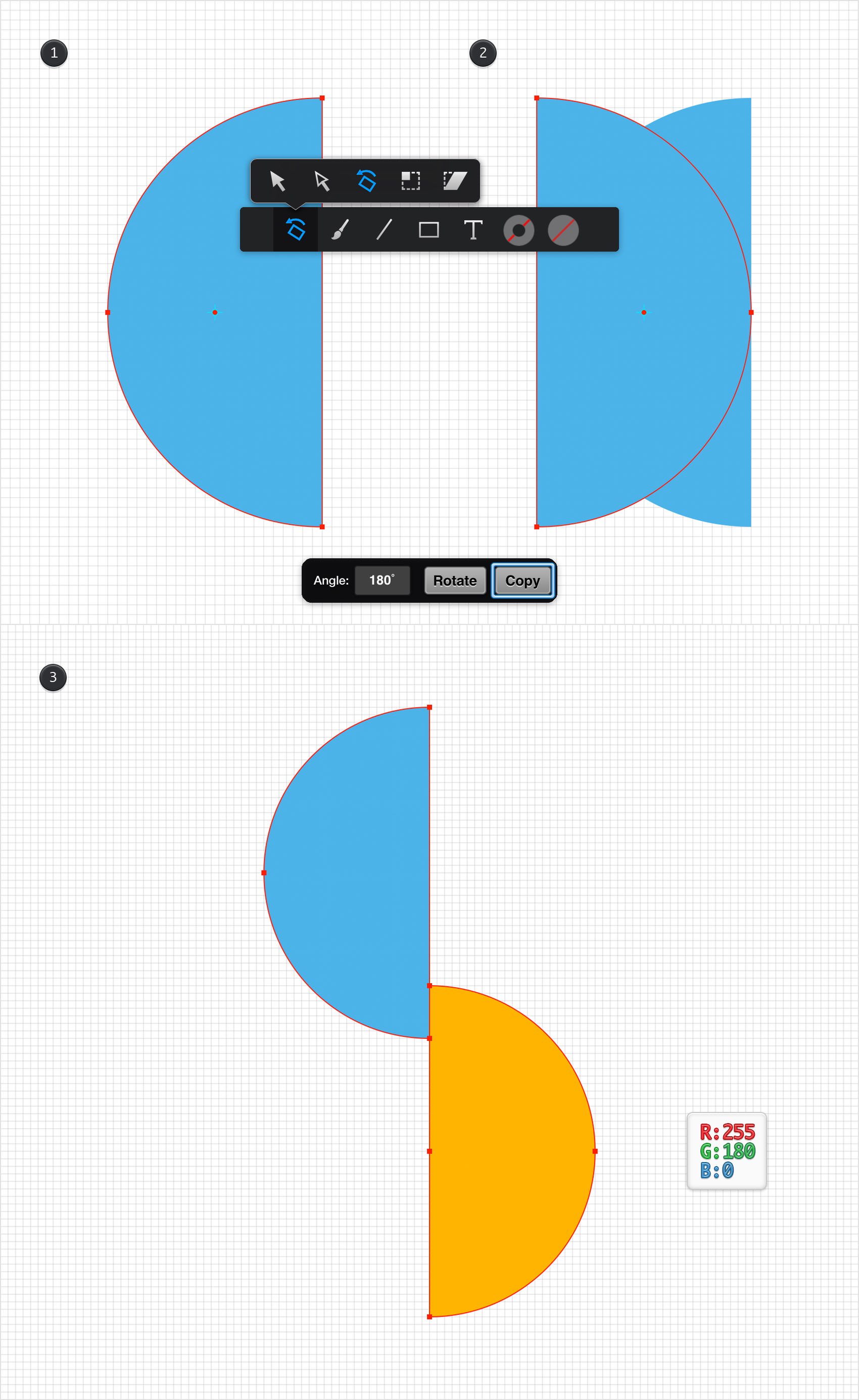

Make sure that your shape is still selected, pick the Rotate Tool and focus on the Tool Options pane. Set the Angle to 180 degrees and tap the Copy button. This will create a copy of your selected shape and rotate it 180 degrees.

Select this newly made shape, replace the existing Fill color with R=255 G=180 B=0, and then place it exactly as shown in the third image (X: 395 px Y: 440 px).

Step 5

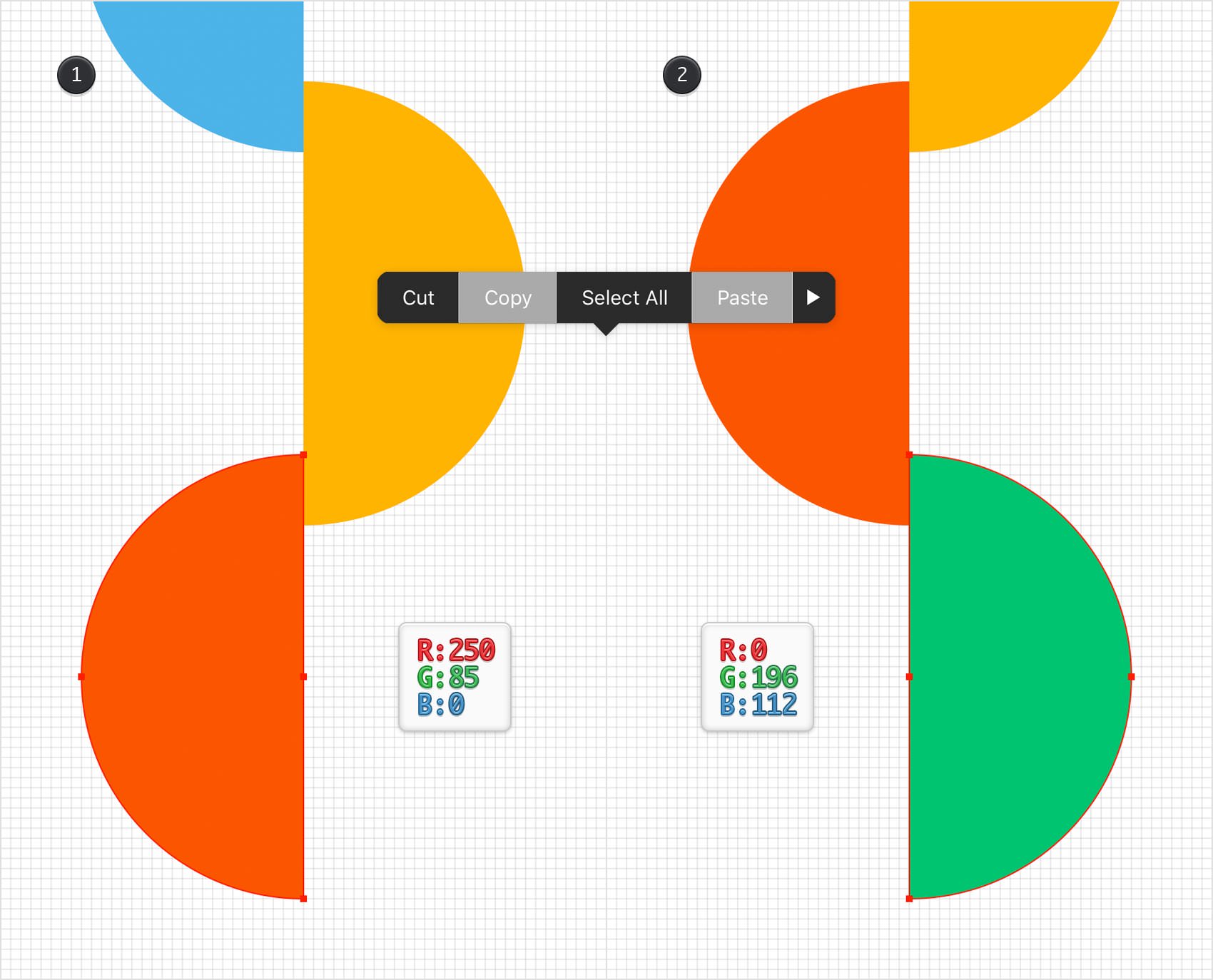

Select your blue shape and tap and hold to open the context menu. Use the Copy and Paste commands to easily duplicate your selection. Select the copy, place it as shown in the first image (X: 285 px Y: 625 px) and replace the existing Fill color with R=250 G=85 B=0.

Duplicate your yellow shape. Select the copy, place it as shown in the second image (X: 395 px Y: 810 px) and replace the existing Fill color with R=0 G=196 B=112.

Step 6

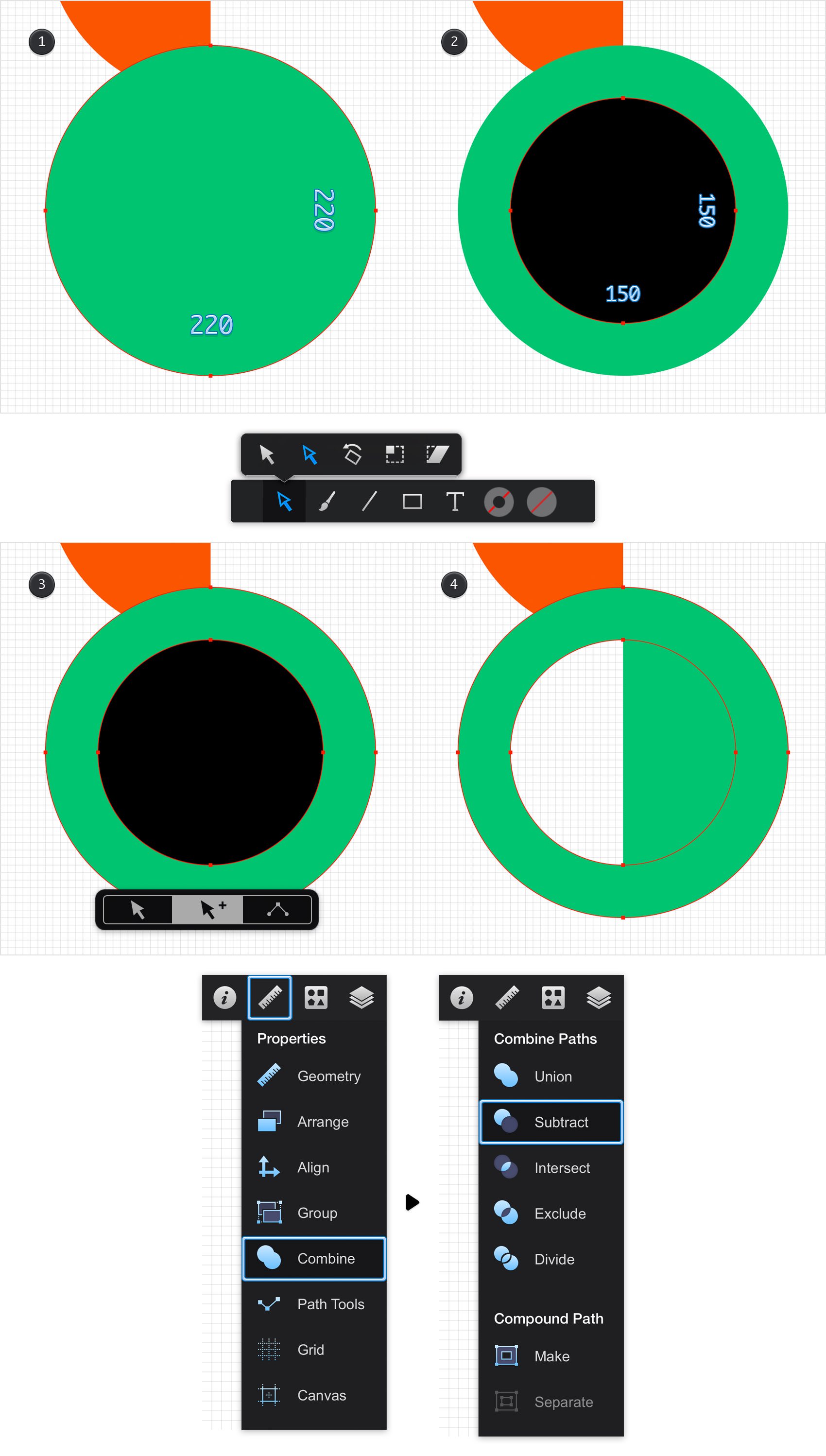

Focus on your green half circle. Pick the Ellipse Tool and create a 220 px circle. Fill this new shape with R=0 G=196 B=112 and place it as shown in the first image. Using the same tool, create a 150 px circle, fill it with black and place it as shown in the second image.

Pick the Path Selection Tool, activate the Add to Selection mode and select both shapes made in this step. Go to the Combine pane and tap that same Subtract command. In the end, your shape should look like in the fourth image.

Step 7

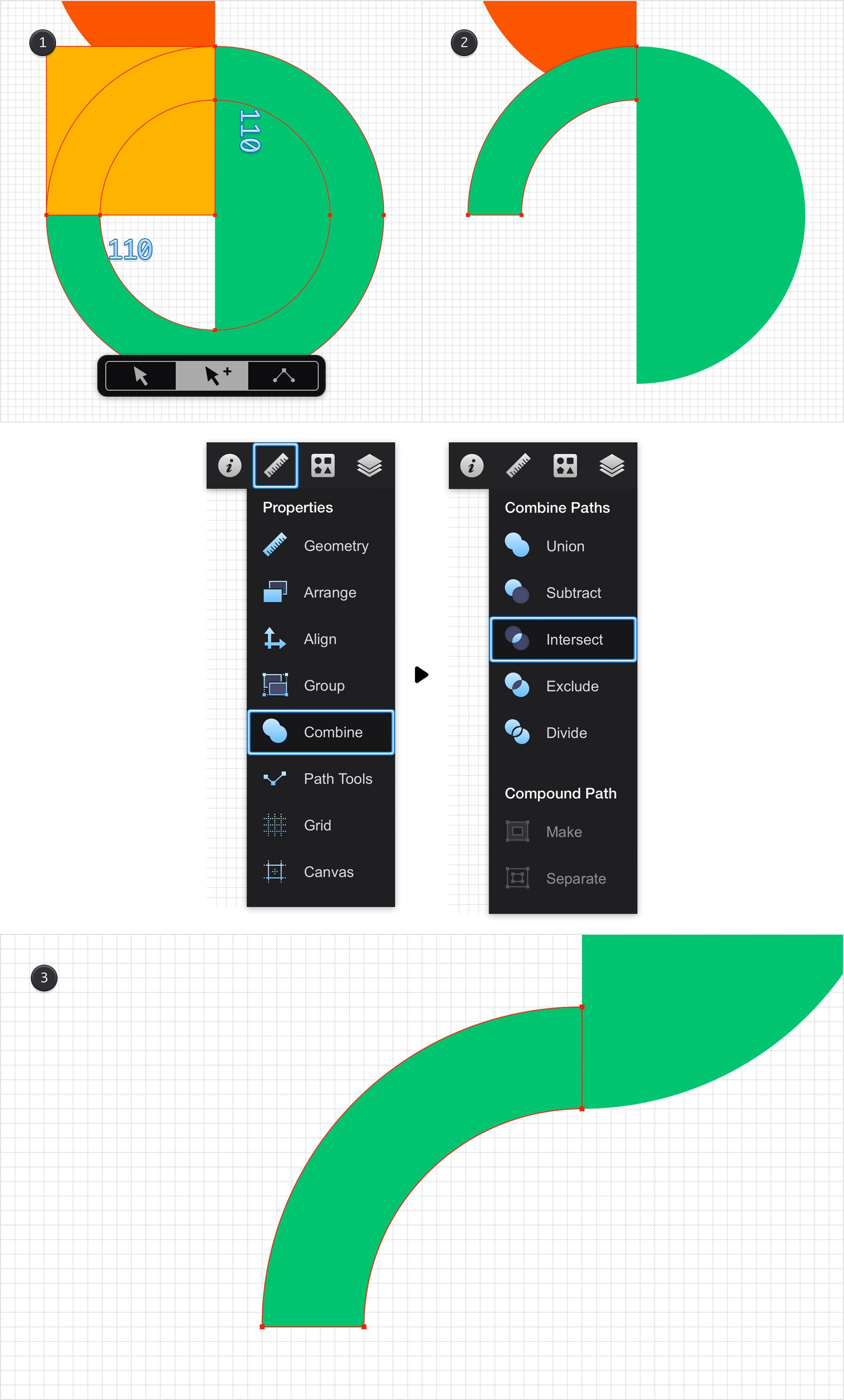

Pick the Rectangle Tool, create a 110 px square and place it as shown in the first image. Select this new shape along with the one made in the previous step and tap the Intersect command from the Combine pane. Using the Move Tool, place the resulting shape as shown in the third image.

Step 8

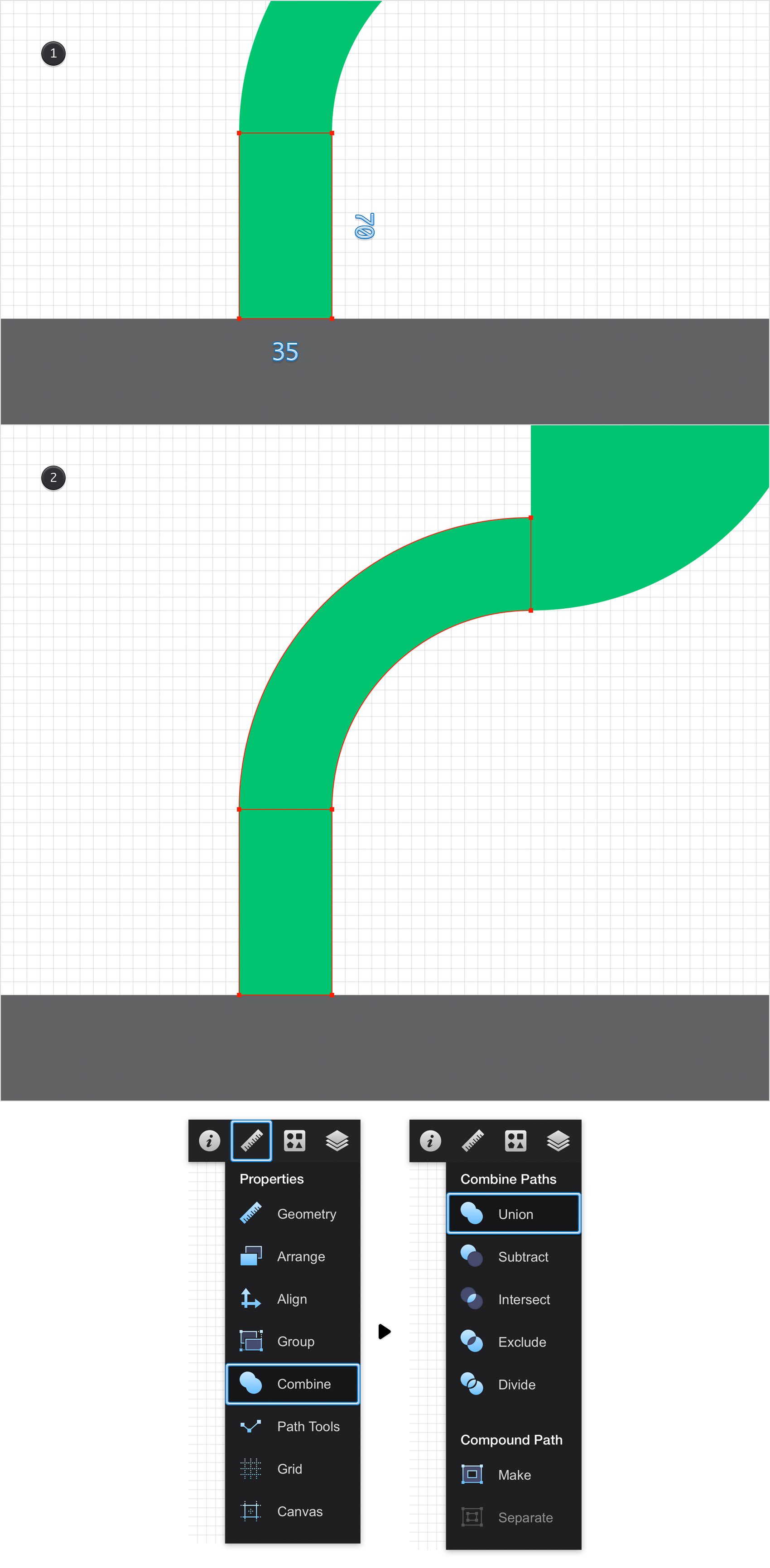

Pick the Rectangle Tool and create a 35 x 70 px shape. Fill this new shape with R=0 G=196 B=112 and place it as shown in the first image.

Using the Move Tool, select the two shapes highlighted in the second image and tap the Union command from the Combine pane.

Step 9

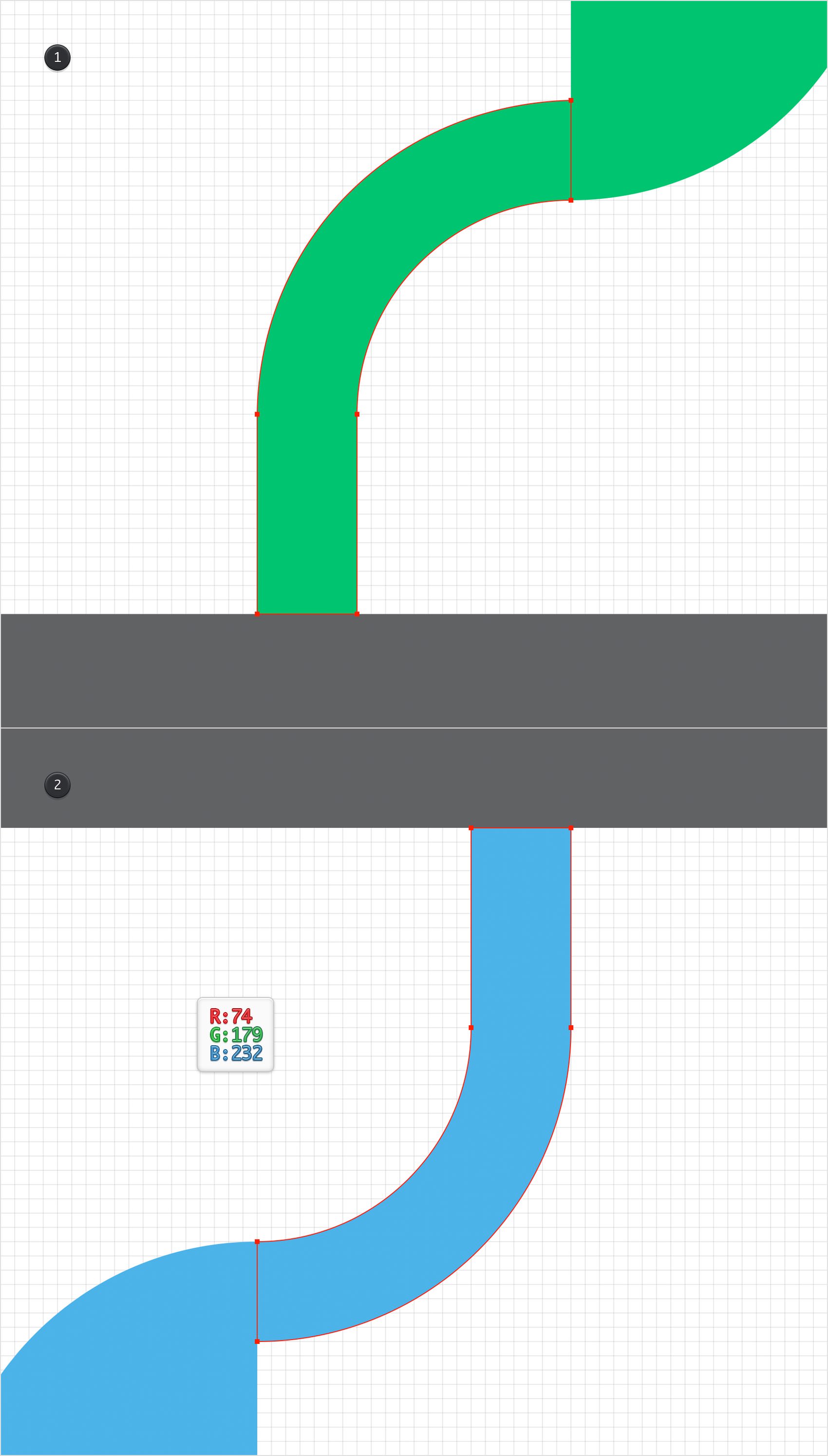

Duplicate the shape highlighted in the first image using the same Copy and Paste commands from that context menu. Select the copy and replace the existing Fill color with R=74 G=179 B=232. Rotate this shape 180 degrees and place it as shown in the second image.

Step 10

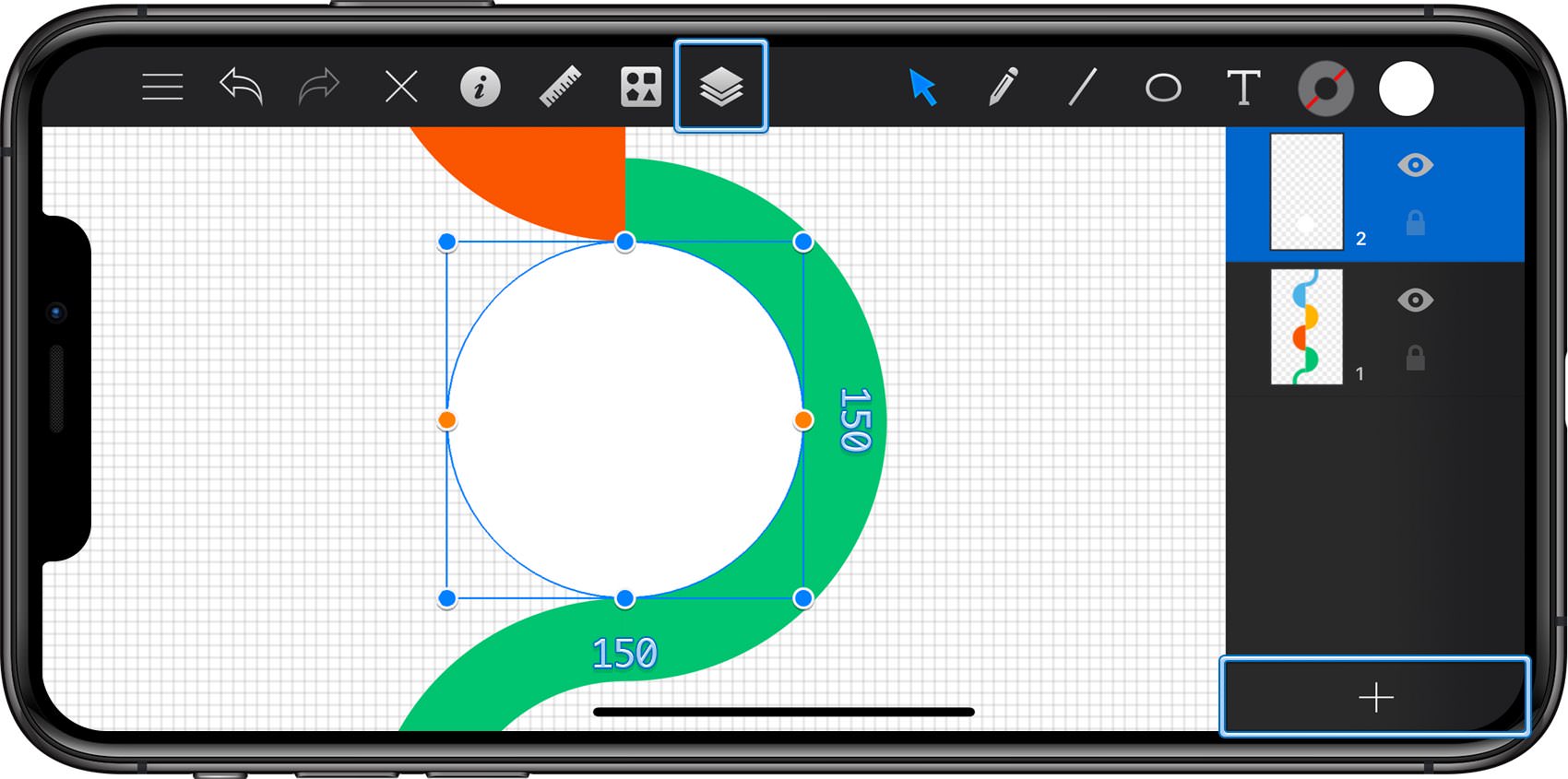

Focus on the right side of your Tithelar and tap the rightmost icon to open the Layers panel. Use that plus button from the bottom of the panel to add a second layer. Make sure that it stays selected, as the new shapes you are about to create will go here.

Pick the Ellipse Tool and create a 150 px circle. Fill this new shape with white (R=255 G2=255 B=255) and place it as shown in the following image.

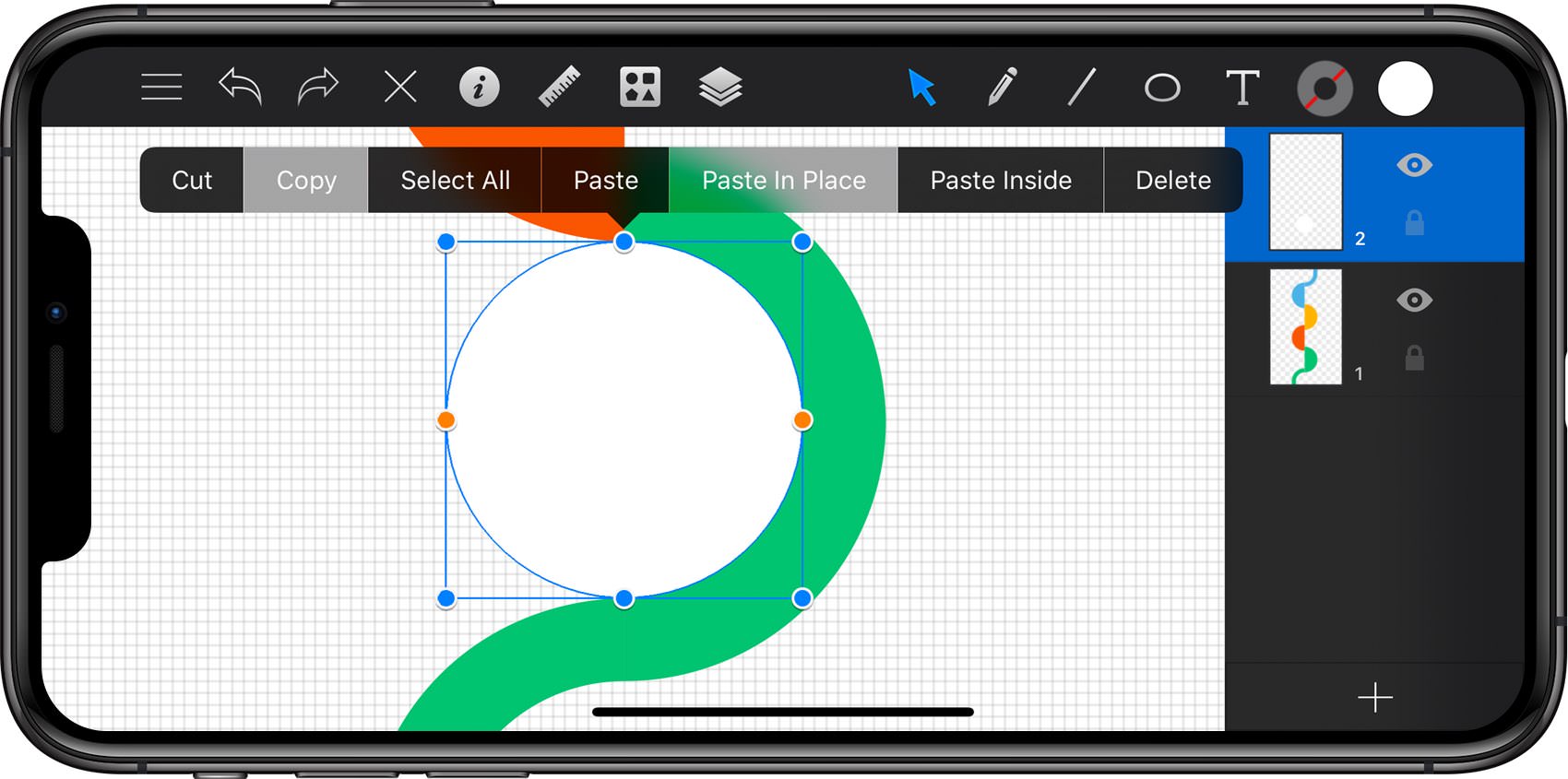

Make sure that your white circle stays selected and open that context menu. First, tap the Copy command and then tap the Paste in Place command. This will add a copy of your selection in the same place.

Step 11

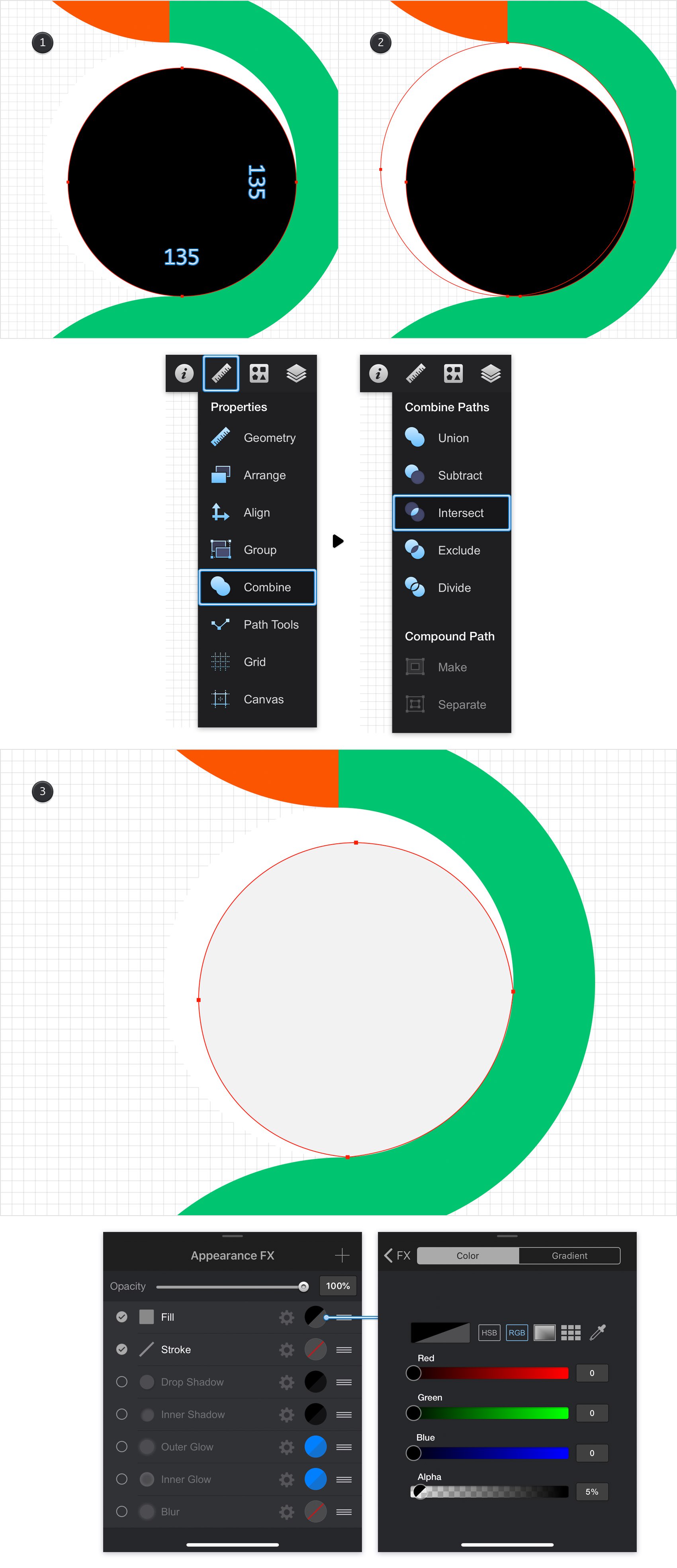

Pick the Ellipse Tool and create a 135 px circle. Fill this new shape with black and place it as shown in the first image.

Switch to the Path Selection Tool and make sure that the Add to Selection mode is active. Select your black circle along with the copy of that white circle and tap the Intersect command from the Combine pane. Select the resulting shape, focus on the right side of your Titlebar and tap the leftmost icon to open the Appearance panel.

Go to the Effects pane and tap the color well that stands for the existing Fill. Set the color to black and drag that Alpha slider to 5%.

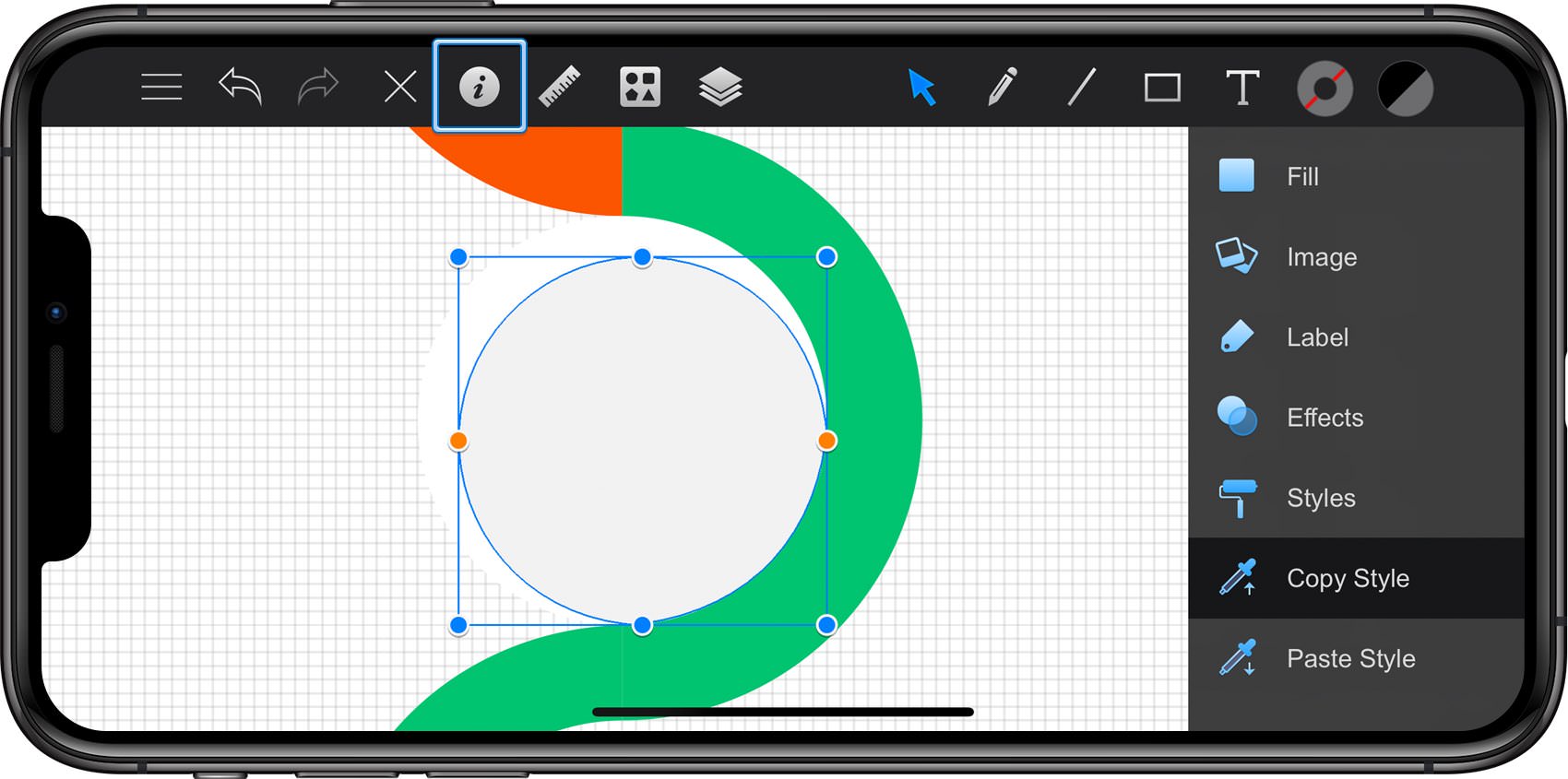

Make sure that your shape is still selected, re-open the Appearance panel and this time tap the Copy Style command.

Step 12

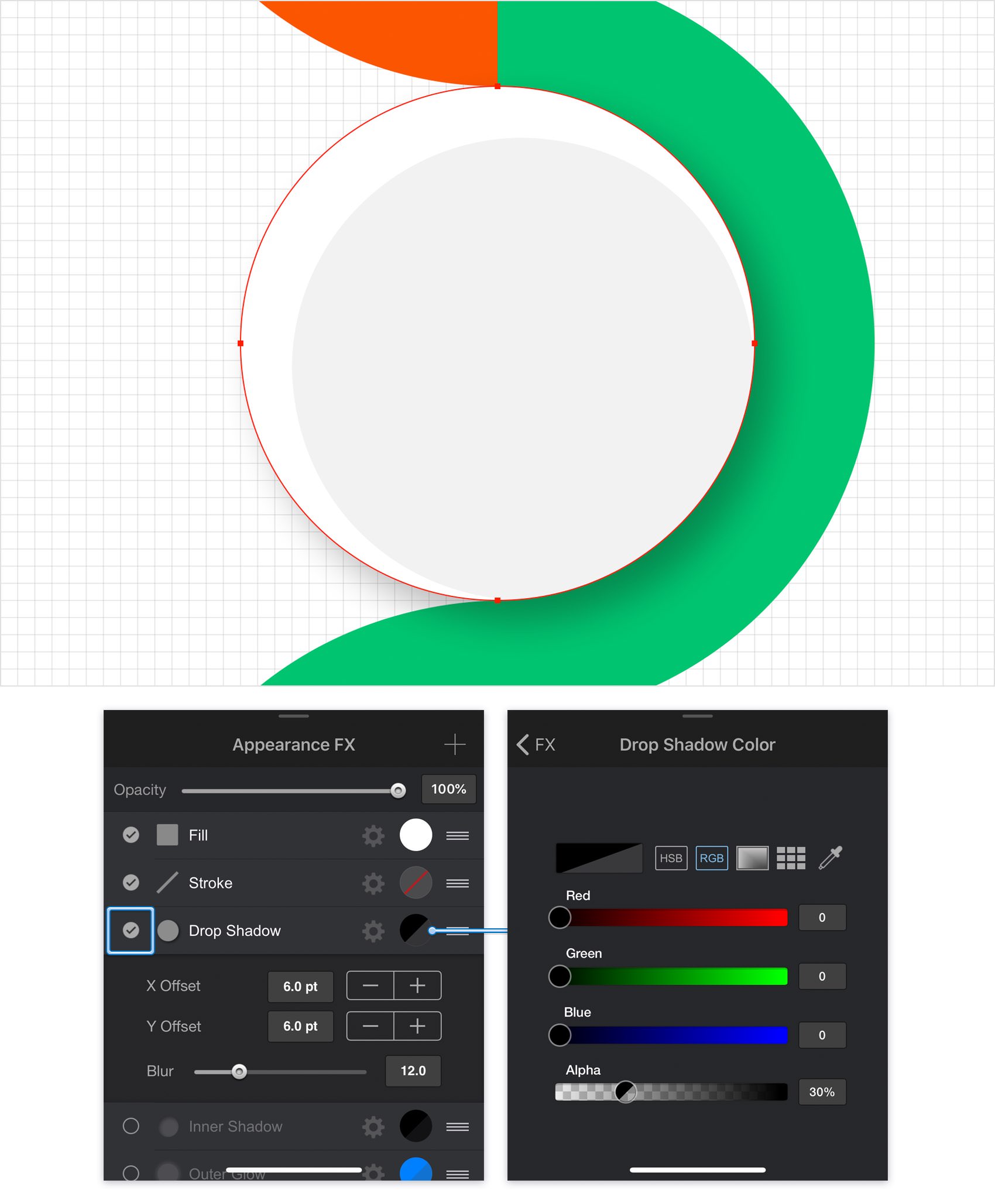

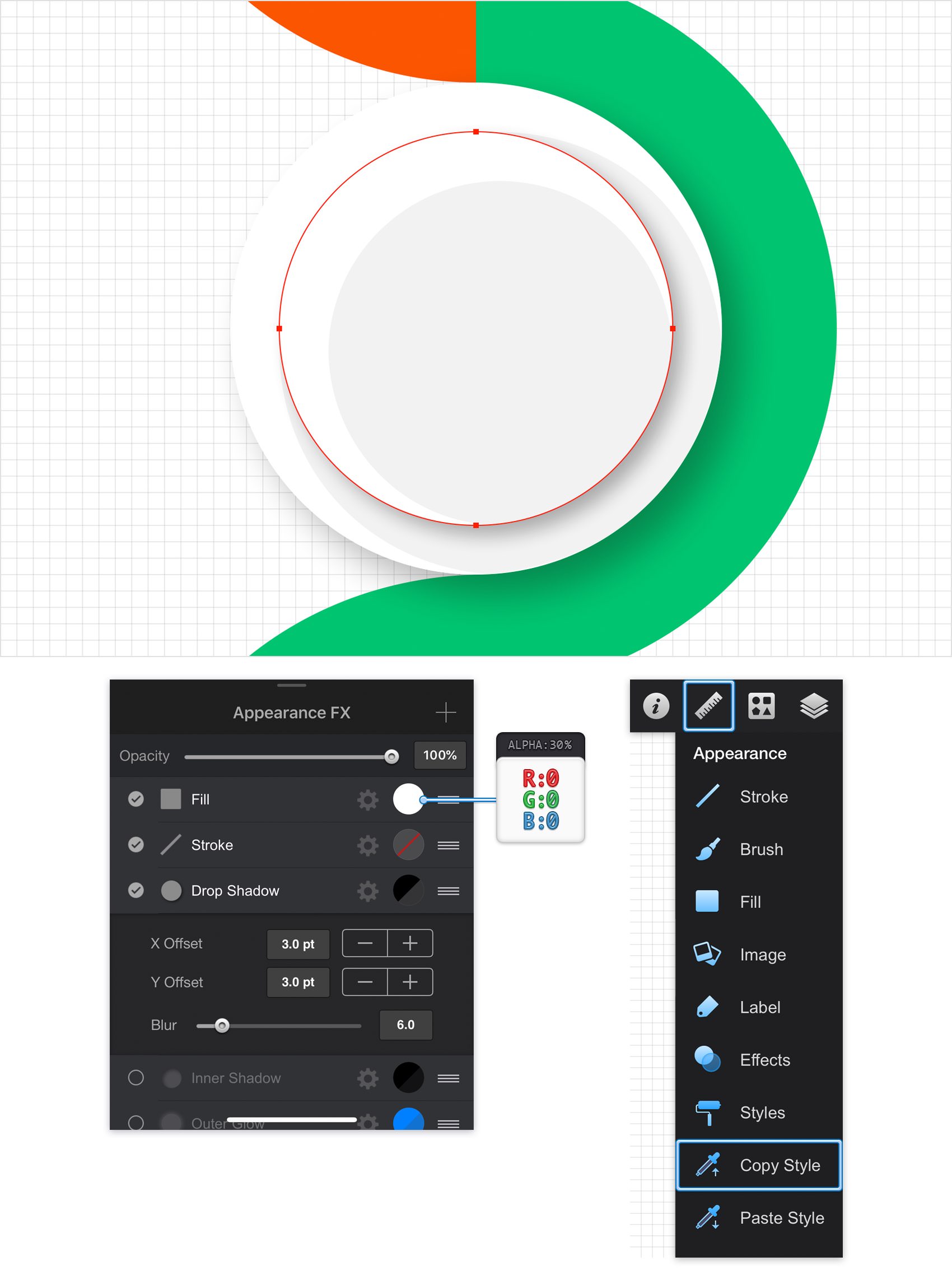

Select your white circle, open the Effects pane and activate the existing Drop Shadow effect. Enter 6 pt in the X and Y boxes and then drag that Blur slider to 12. Tap the color well that stands for this effect and drag the Alpha slider to 30%.

Step 13

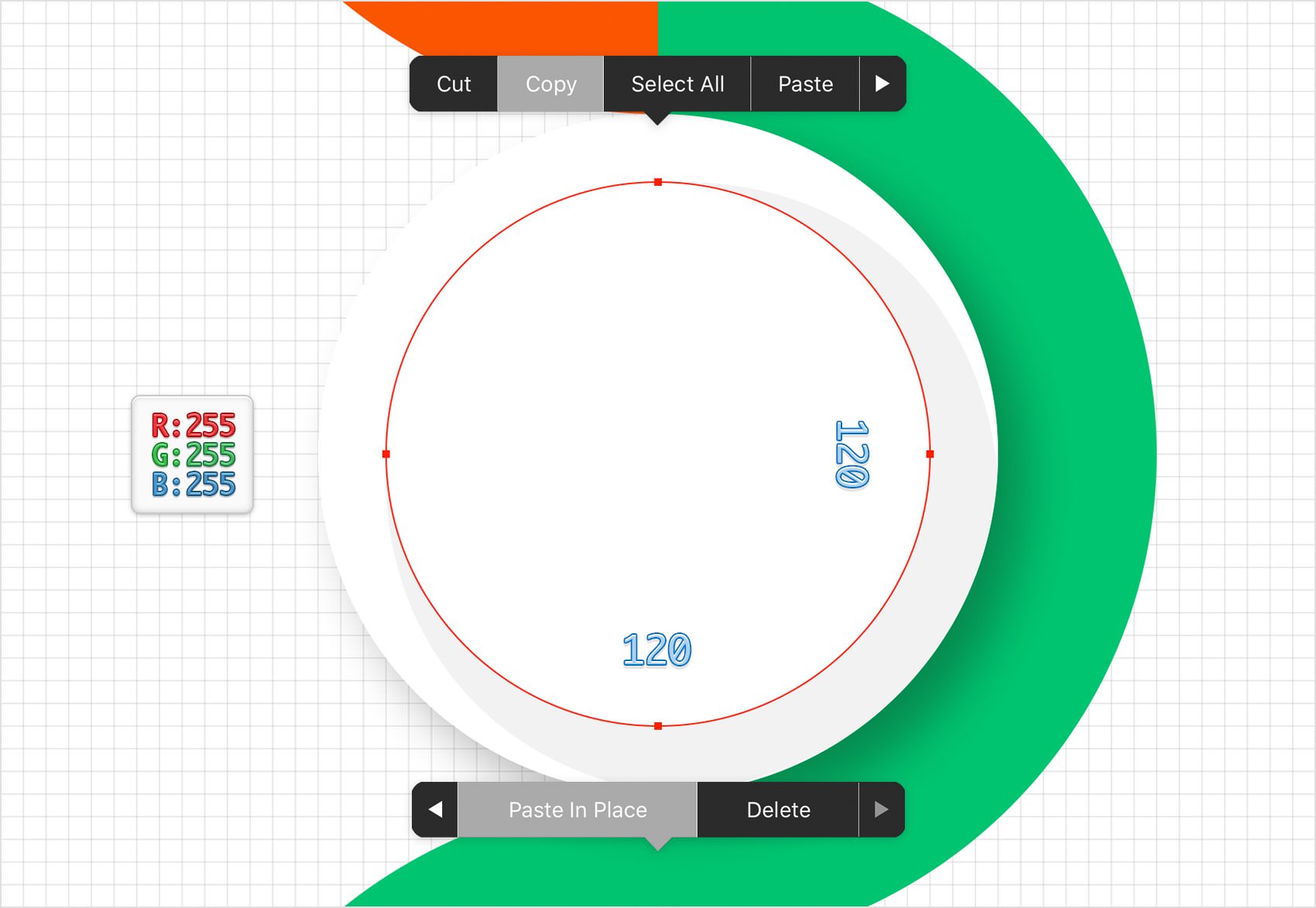

Pick the Ellipse Tool and create a 120 px circle. Fill this new shape with white, place it as shown in the following image and don't forget to add a copy in the same place.

Step 14

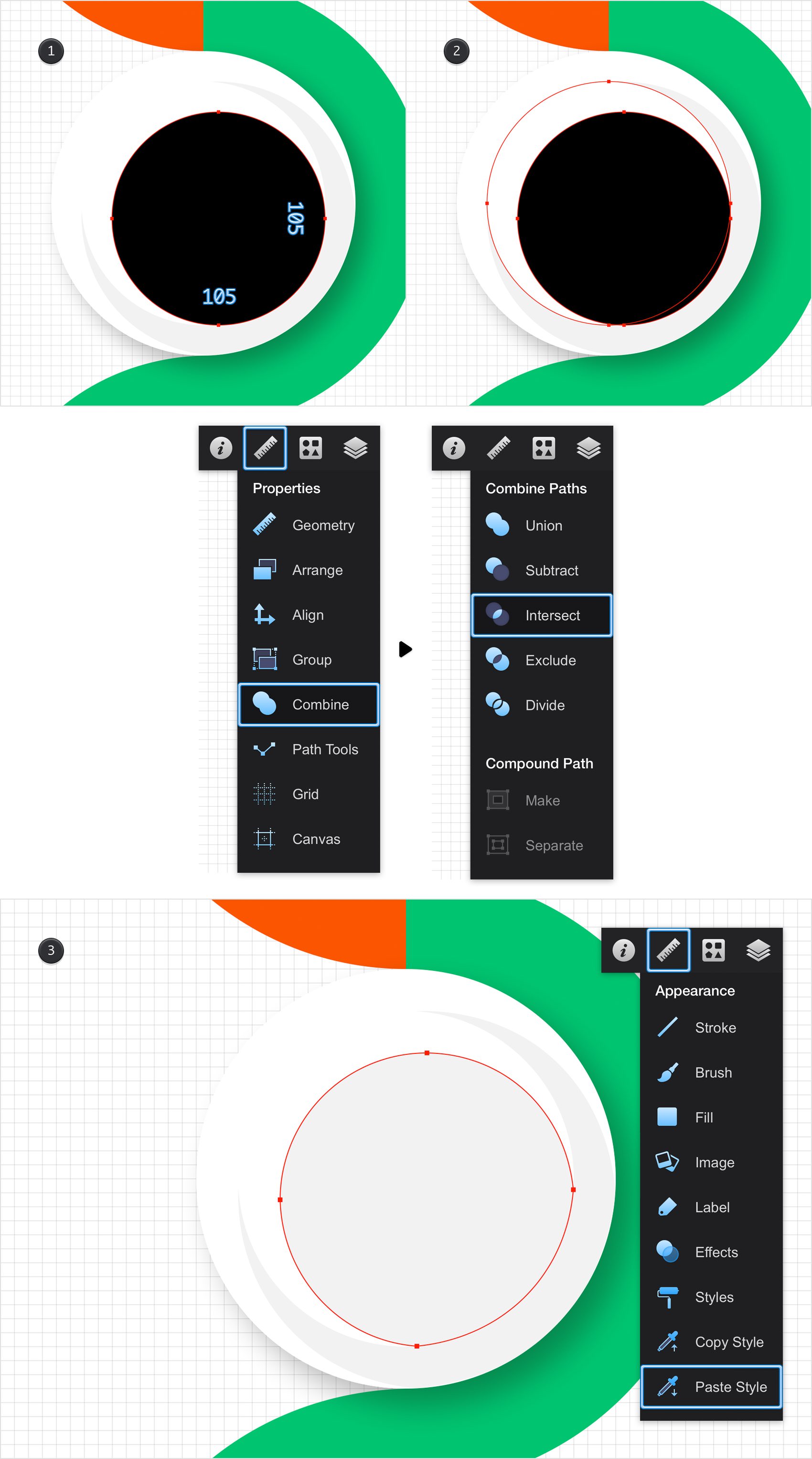

Pick the Ellipse Tool and create a 105 px circle. Fill this new shape with black and place it as shown in the first image.

Switch to the Path Selection Tool and make sure that the Add to Selection mode is active. Select your black circle along with the copy of that white circle (made in the previous step) and tap the Intersect command from the Combine pane.

Select the resulting shape and use the Paste Style command from the Appearance panel to paste the style copied in the eleventh step.

Step 15

Select your 120 px, white circle and focus on the Effects pane. Activate the existing Drop Shadow effect and enter the attributes shown below. Once you're done, copy the style of this shape.

Step 16

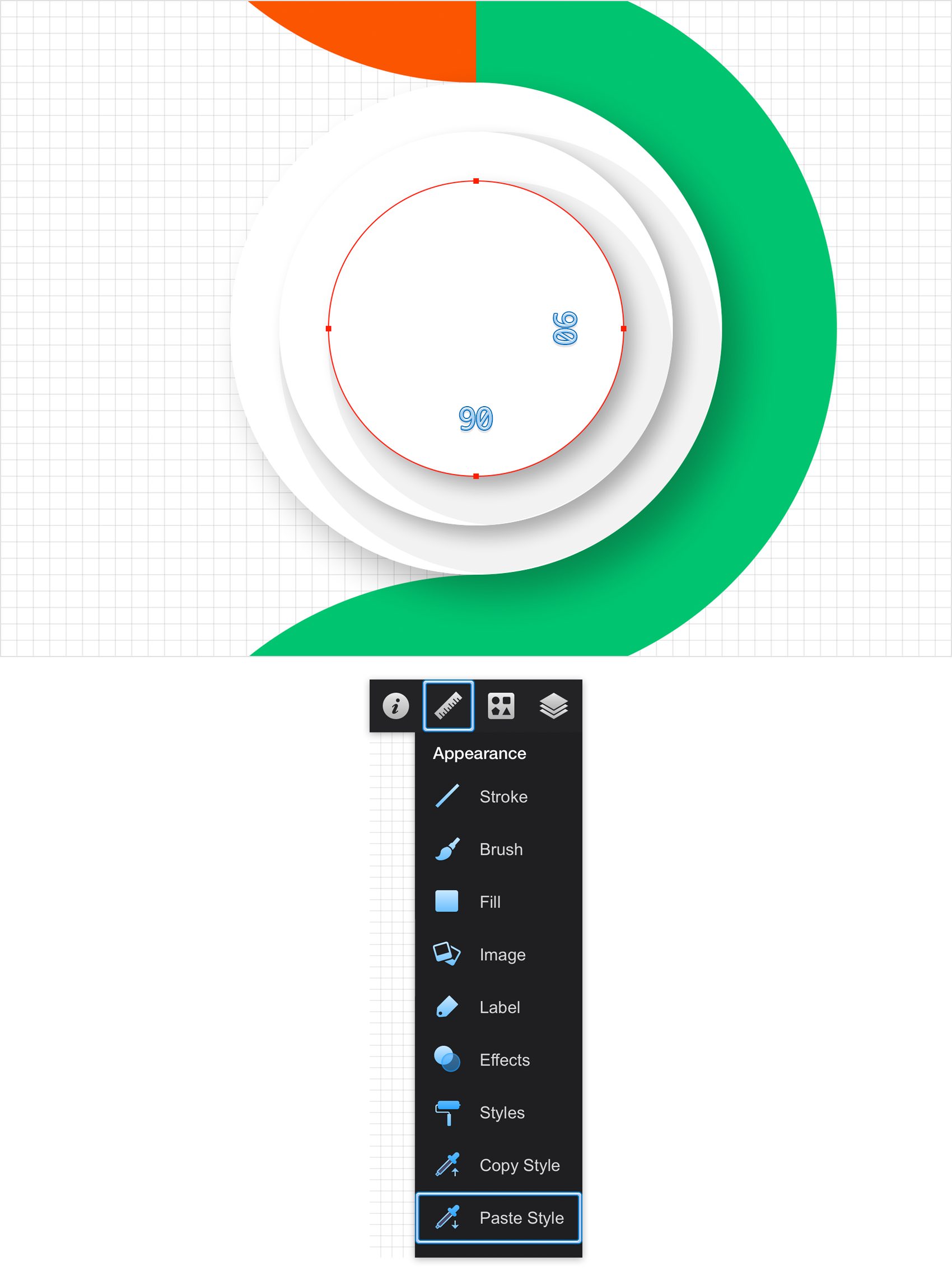

Pick the Ellipse Tool and create a 90 px circle. Place this new shape as shown in the following image and then tap the Paste Style command from the Appearance panel.

Step 17

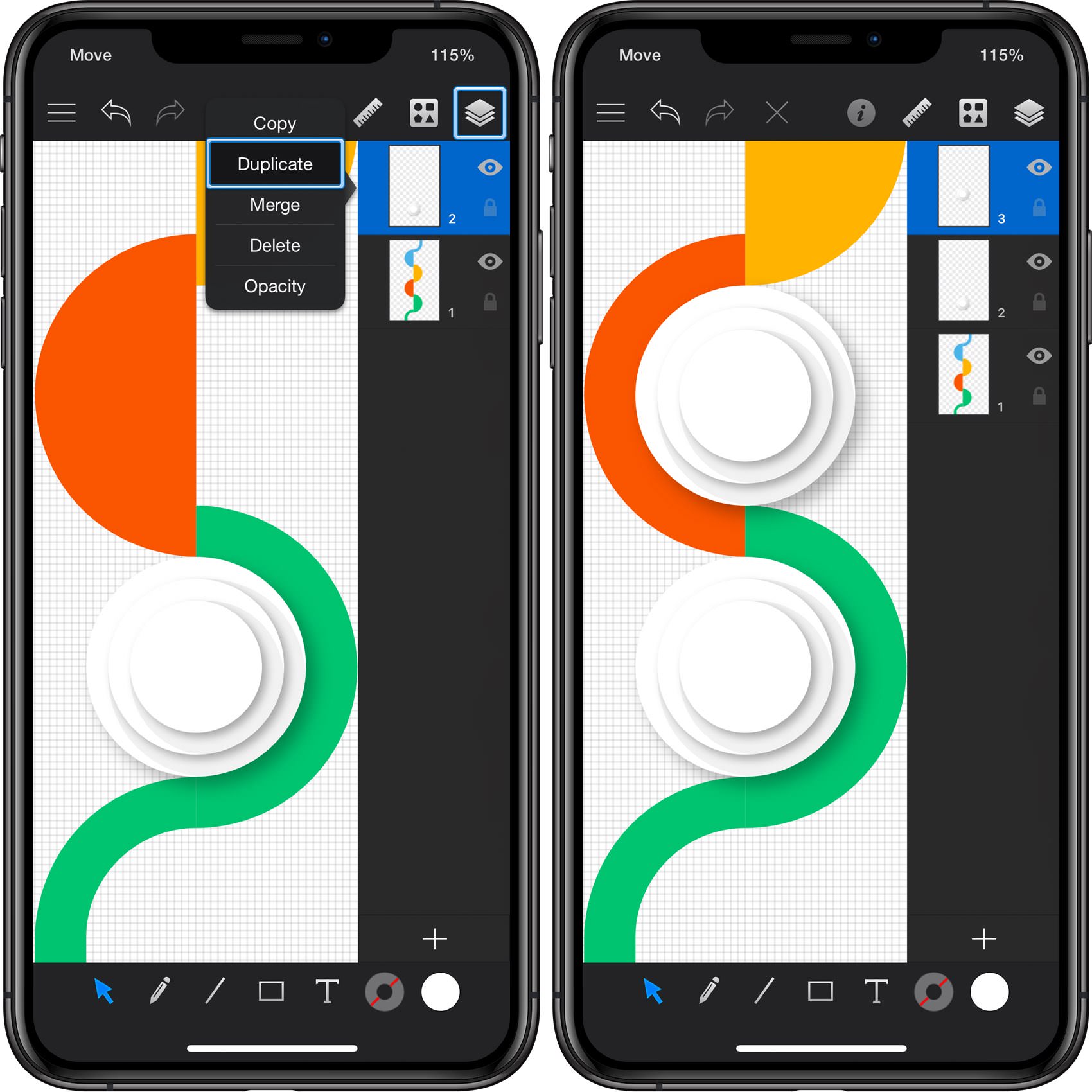

Focus on the Layers panel and make sure that your top layer is still selected. Tap it and go to Duplicate. Make sure that the newly added layer remains selected.

Using the Move Tool, select all the shapes from your active layer and move them up, as shown in the second image.

Step 18

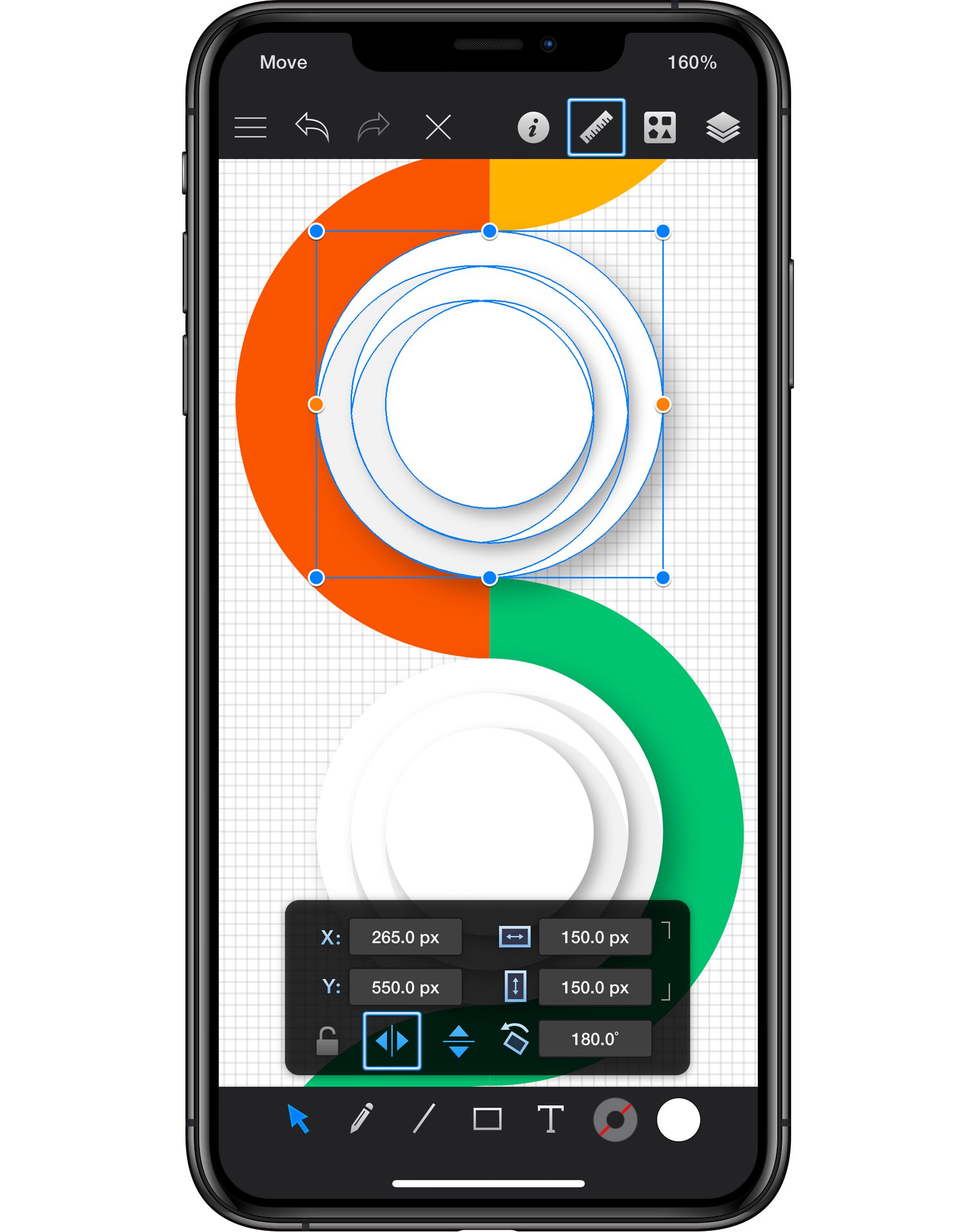

Make sure that the shapes from your activate layer are still selected. Open the Geometry pane from the Properties panel and tap the Flip Horizontal button.

Step 19

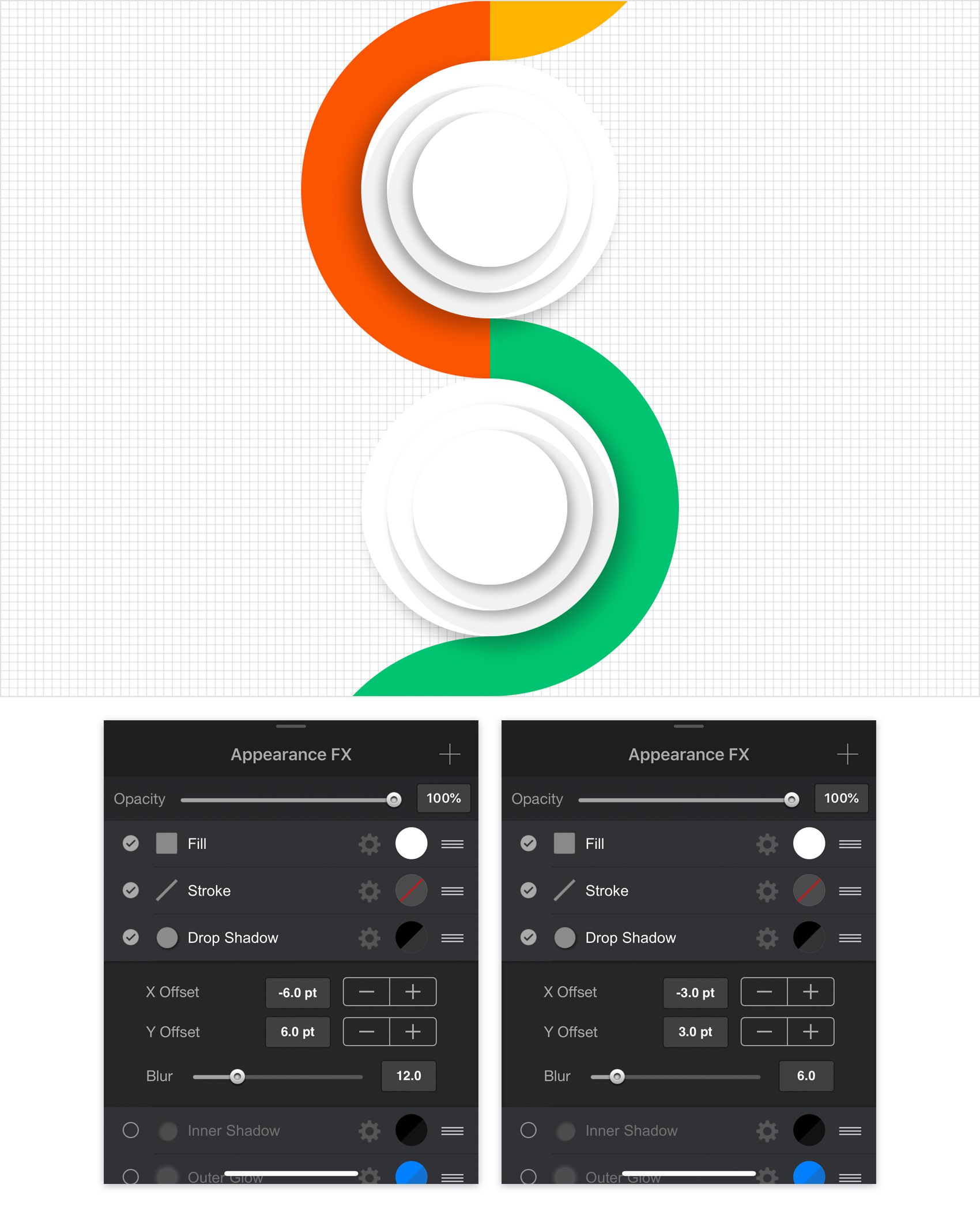

Keep focusing on the shapes from your active layer. Select the largest, white circle and open the Effects pane. Select the Drop Shadow effect and inverse the X value, from 6 pt to -6 pt.

Select the other two, white circles and return to the Effects pane. Again, focus on the Drop Shadow effect and inverse that same X value. In the end, things should look like in the following image.

Step 20

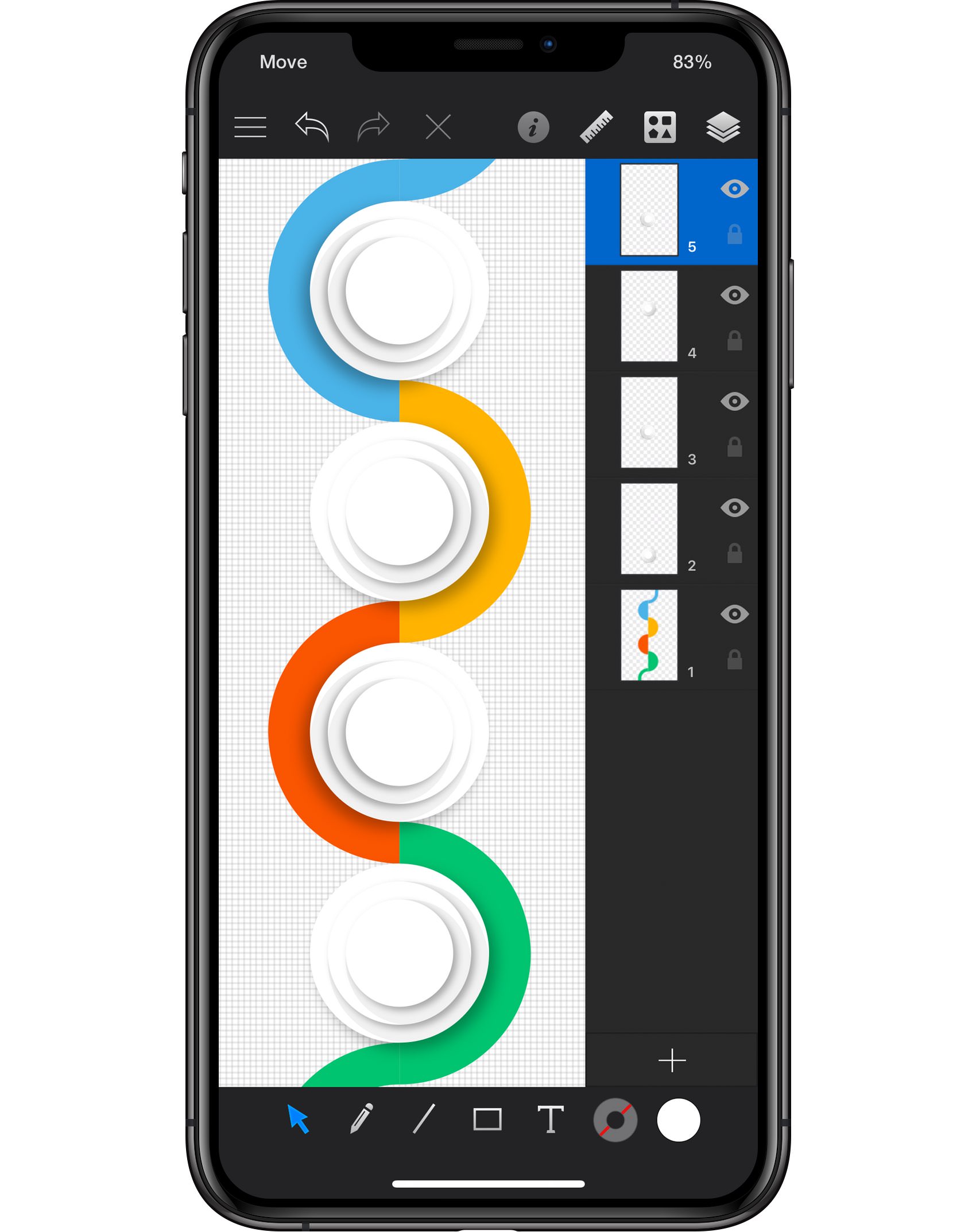

Focus on the Layers panel and duplicate layer #2 and layer #3.

Select the copy of layer #2 and drag it in the top of the panel. Tap and hold, to drag your layer in the desired location. Select all the shapes that lie inside this selected layer and drag them above that yellow half circle, as shown in the following image.

Select the copy of layer #3 and drag it in the top of the panel. Select all the shapes that lie inside this selected layer and drag them above that blue half circle, as shown in the following image.

Step 21

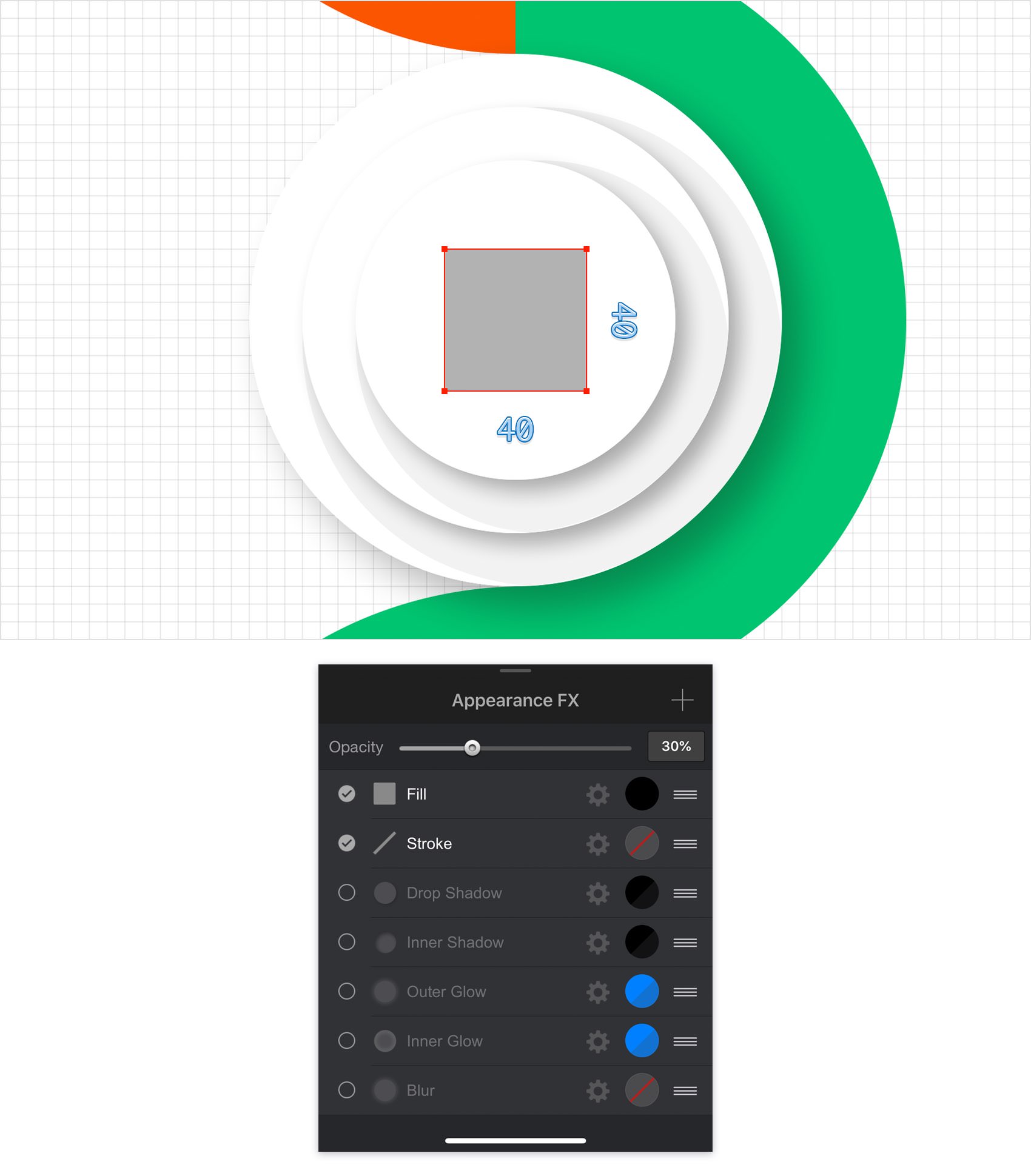

Keep focusing on the Layers panel and add a new layer. Drag it to the top of the panel and make sure that it stays selected.

Pick the Rectangle Tool, create a 40 px square and place it as shown in the following image. Make sure that this shape stays selected and focus on the Effects pane. Tap the Fill color well, set the color to black and drag that Alpha slider to 30%.

Step 22

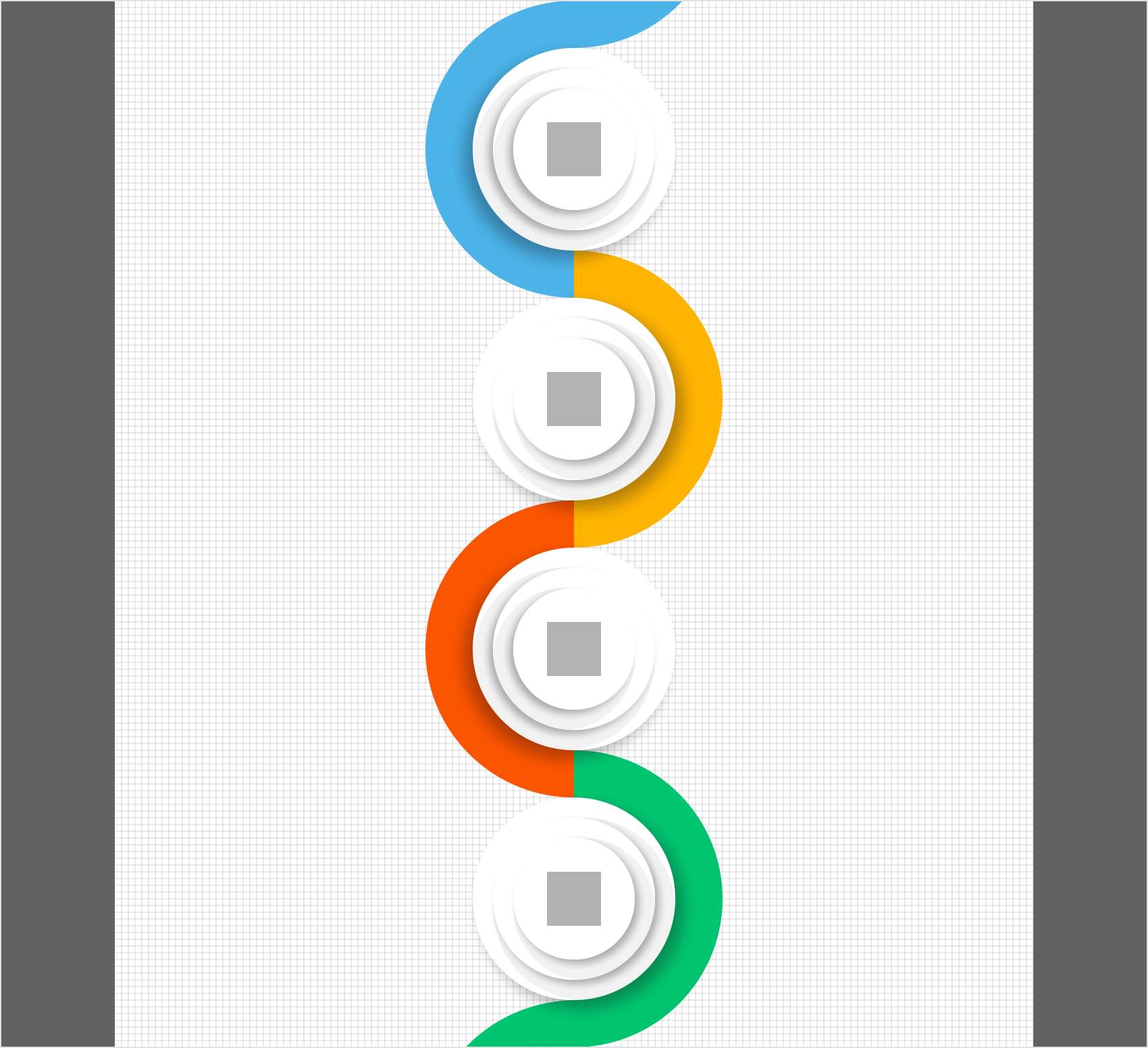

Add three copies of your black square and place them as shown in the following image. These four shapes won't be part of your final design. You're only going to use them as a simple guide.

Step 23

Go to the Layers panel and add a new layer. Drag it to the top of the panel and make sure that it stays selected.

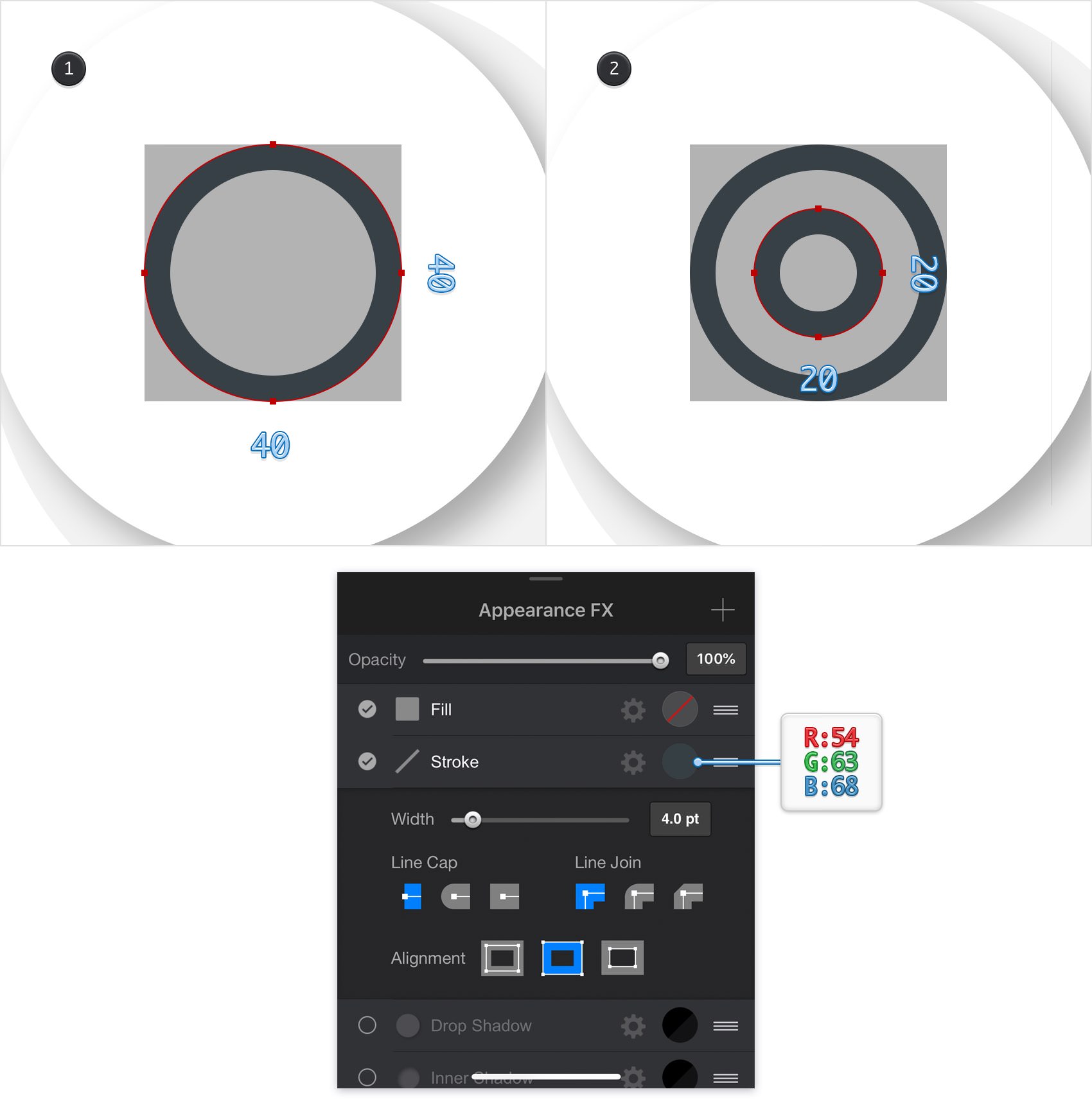

Focus on your bottom, black square. Pick the Ellipse Tool, create a 40 px circle and place it as shown in the first image. With this new shape selected, move to the the Effects pane.

First, make sure that the Fill is invisible and then select the Stroke. Drag that Width slider to 4 pt and set the Alignment to Inside, and then tap the color well of this Stroke. Set the color to R=54 G=63 B=68 and drag the Alpha slider to 100%.

Using the same tool, create a 20 px circle. Place it as shown in the second image and apply the same Effects attributes used for the 40 px circle.

Step 24

Now, you will need a grid every 1px which means that you need to return to the Grid Spacing pane and enter 1 px in both Spacing boxes.

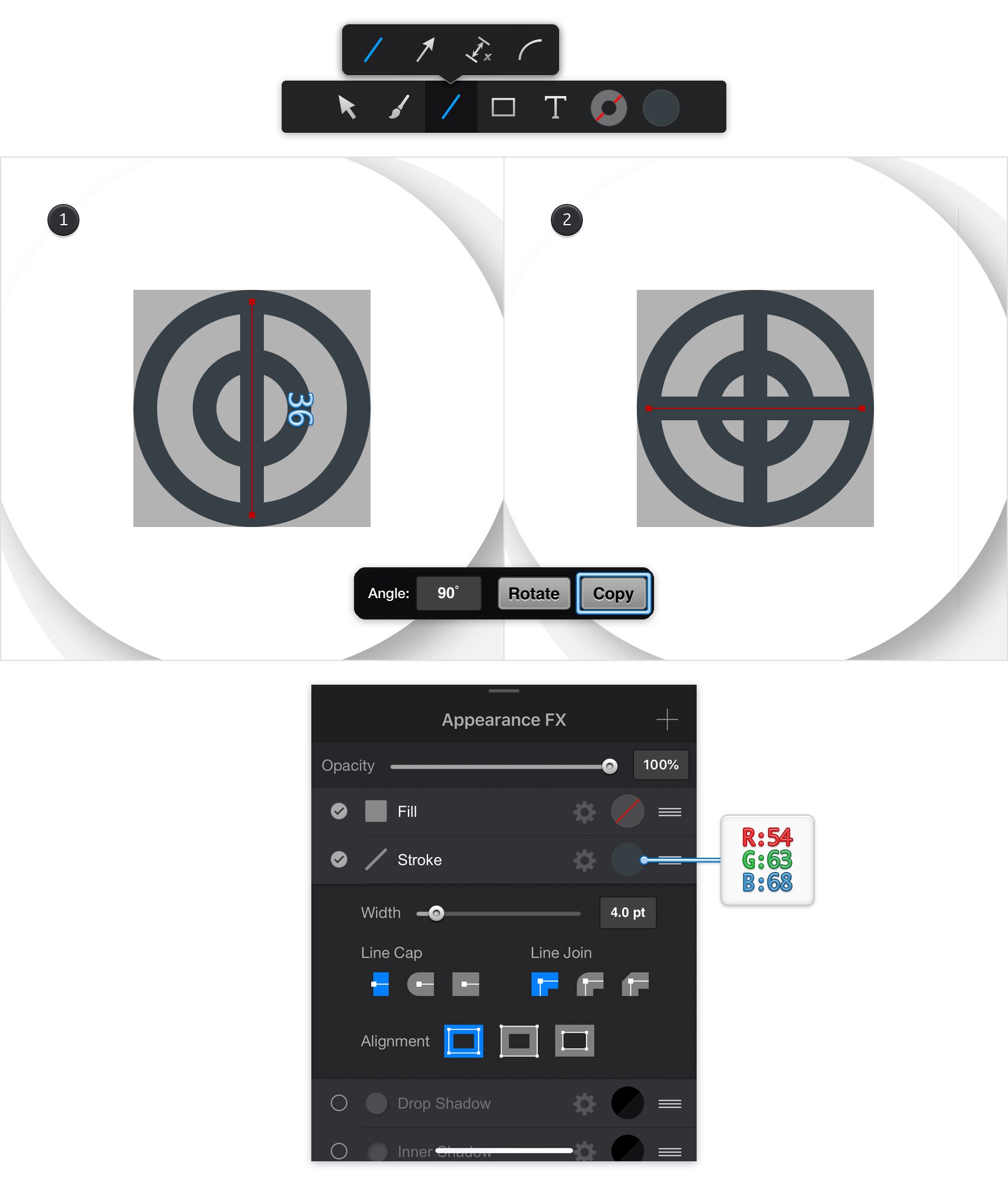

Using the Line Tool, create a 36 px, vertical path and place it as shown in the first image. Add a 4 pt stroke for this new path, set the Alignment to Center and the color to R=54 G=63 B=68.

Make sure that your vertical path stays selected and switch to the Rotate Tool. Set the Angle to 90 degrees and then tap that Copy button.

Step 25

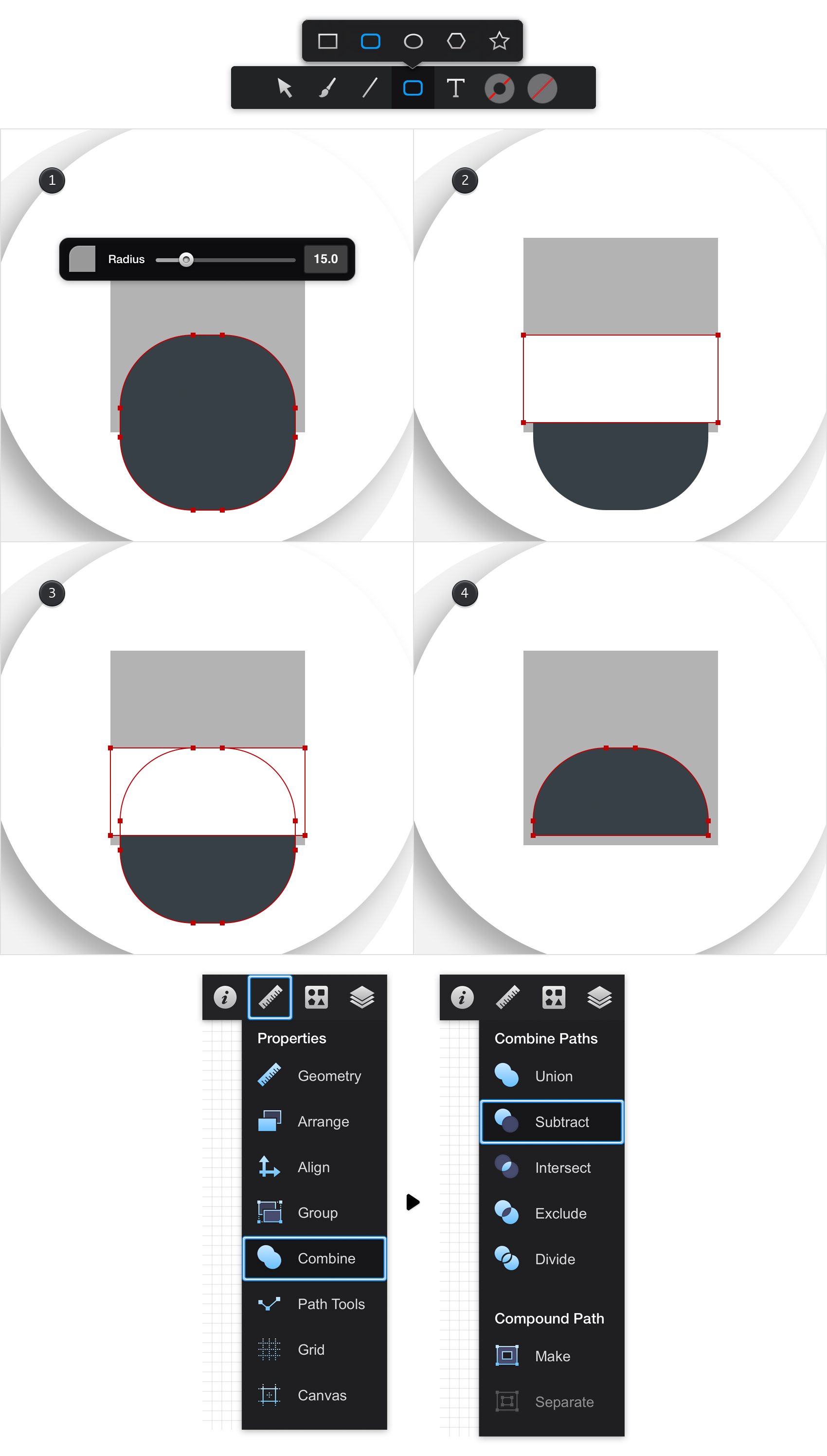

Move up, to your next black square. Pick the Rounded Rectangle Tool, focus on the Tool Options pane and set the Radius to 15. Create a 36 x 36 px shape, fill it with R=54 G=63 B=68 and place it as shown in the first image.

Switch to the Rectangle Tool, create a 40 x 18 px shape and place it exactly as shown in the second image.

Select both shapes made in this step and tap the Subtract command from the Combine pane. In the end, your shape should look like in the fourth image.

Step 26

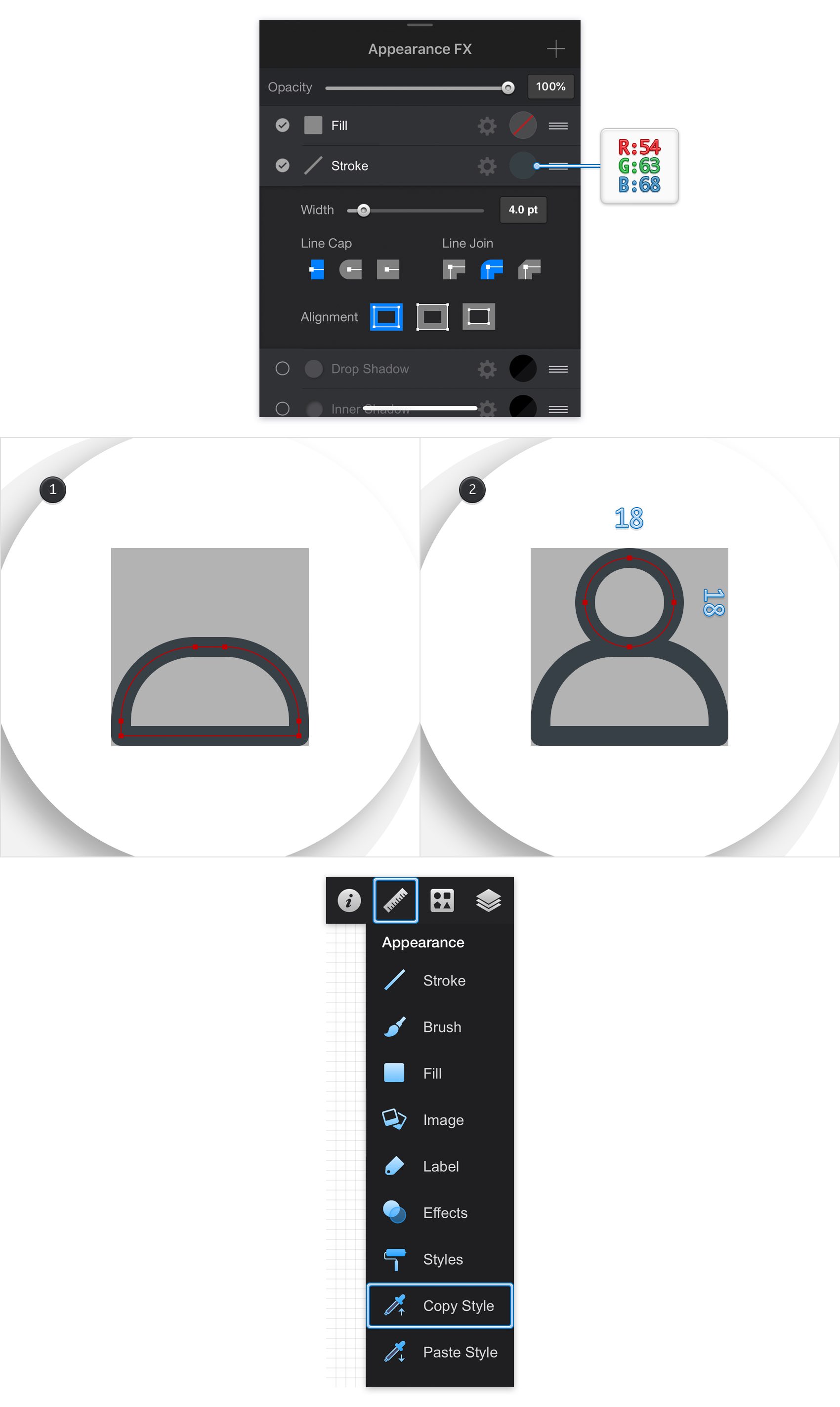

Make sure that the shape made in the previous step stays selected and focus on the Effects**** pane.

First, make the Fill invisible and set the Stroke color to R=54 G=63 B=68. Keep focusing on the Stroke and drag the Width slider to 4 pt. Be sure that the Position is set the Center and don't forget to check the Rounded Join button. Once you're done, copy the style of this shape.

Pick the Ellipse Tool and create an 18 px circle. Place it as shown in the second image and paste the style.

Step 27

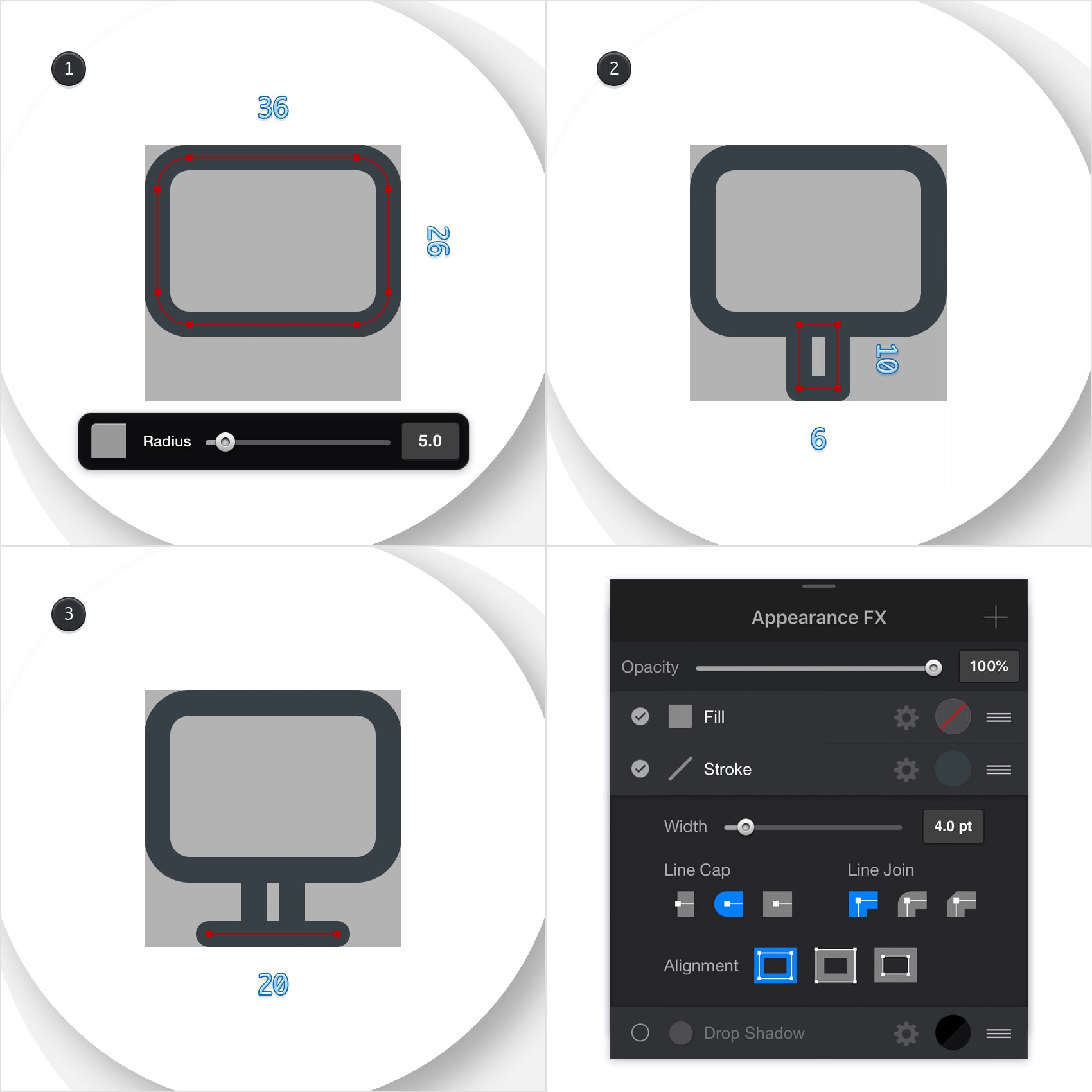

Move up, to your next black square. Pick the Rounded Rectangle Tool and set the Radius to 5. Create a 36 x 26 px shape, place it as shown in the first image and paste the style.

Switch to the Rectangle Tool and create a 6 x 10 px shape. Place it as shown in the second image and paste the style.

Using the Line Tool, create a 20 px, vertical path. Place it as shown in the third image, paste the style, and then go to the Effects pane and check the Rounded Cap button.

Step 28

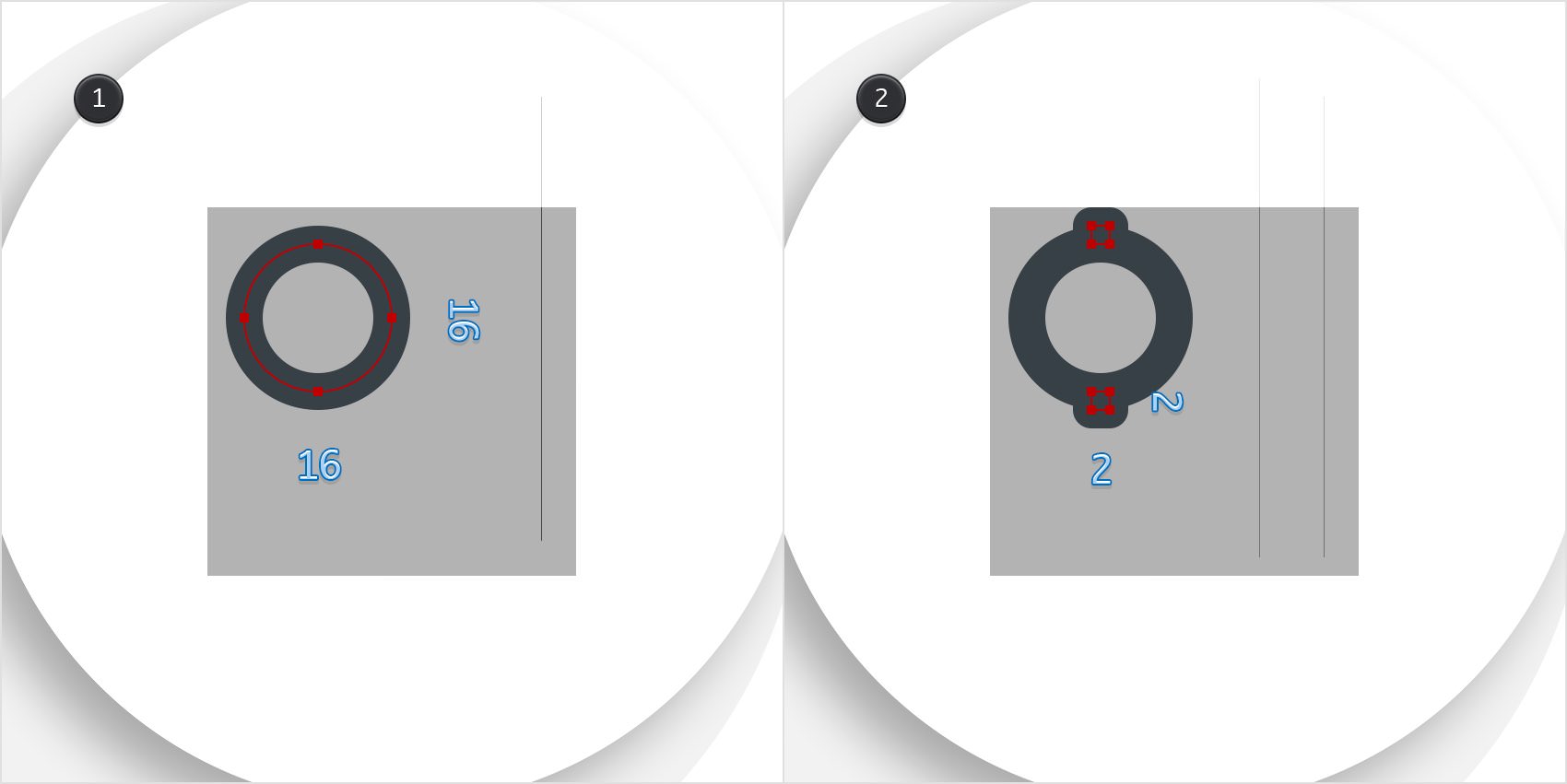

Move up, to your top black square. Pick the Ellipse Tool and create a 16 px circle. Place it as shown in the first image and paste the style.

Switch to the Rectangle Tool and create two, 2 px squares. Place these new shapes as shown in the second image and paste the style.

Step 29

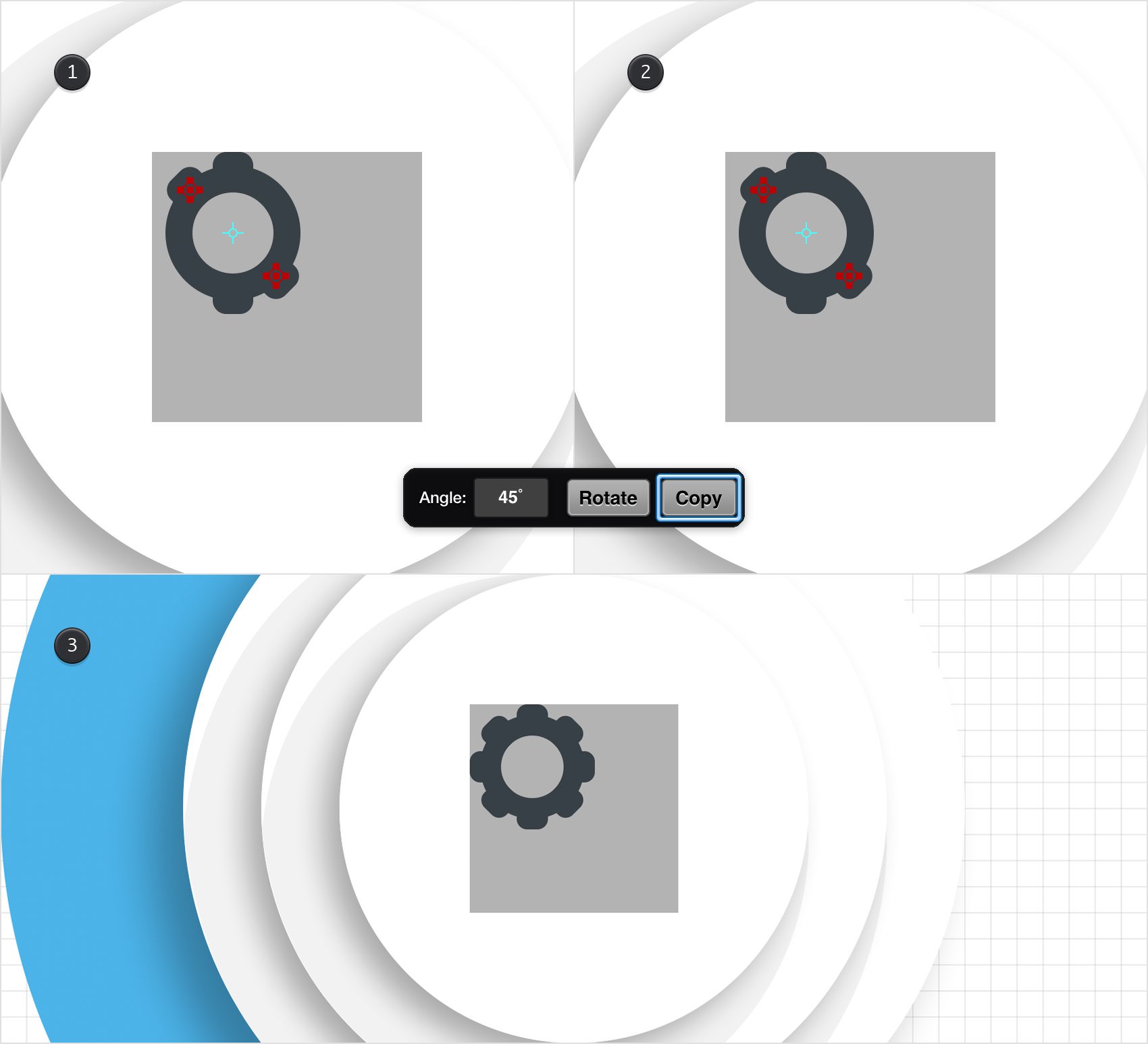

Select both tiny squares added in the previous step and pick the Rotate Tool. Set the Angle to 45 degrees and then tap that Copy button three times. In the end, things should look like in the third image.

Step 30

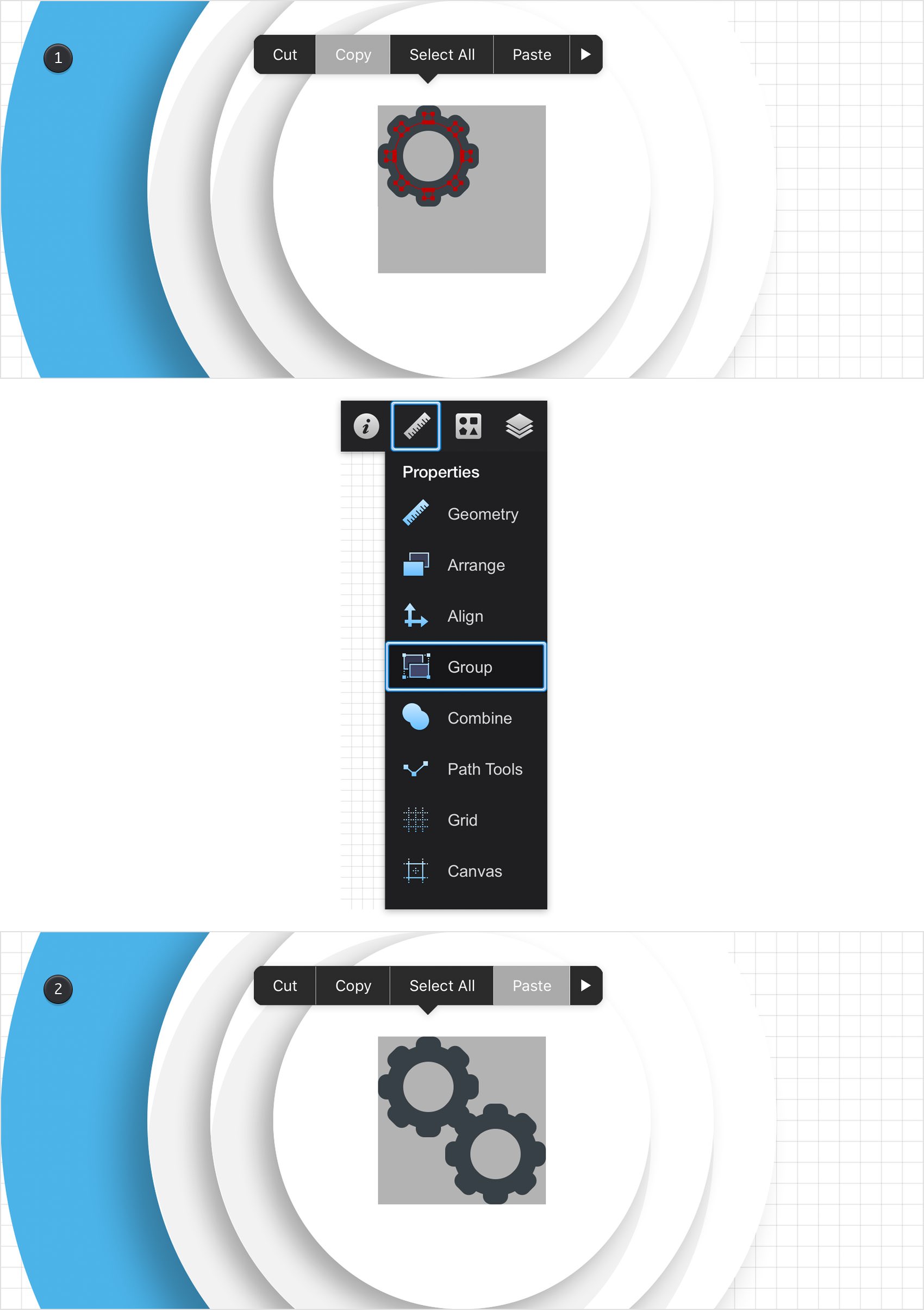

Select the shapes highlighted in the first image and Group them using the Group command from the Properties panel. Make a copy of this group and place it as shown in the second image.

Step 31

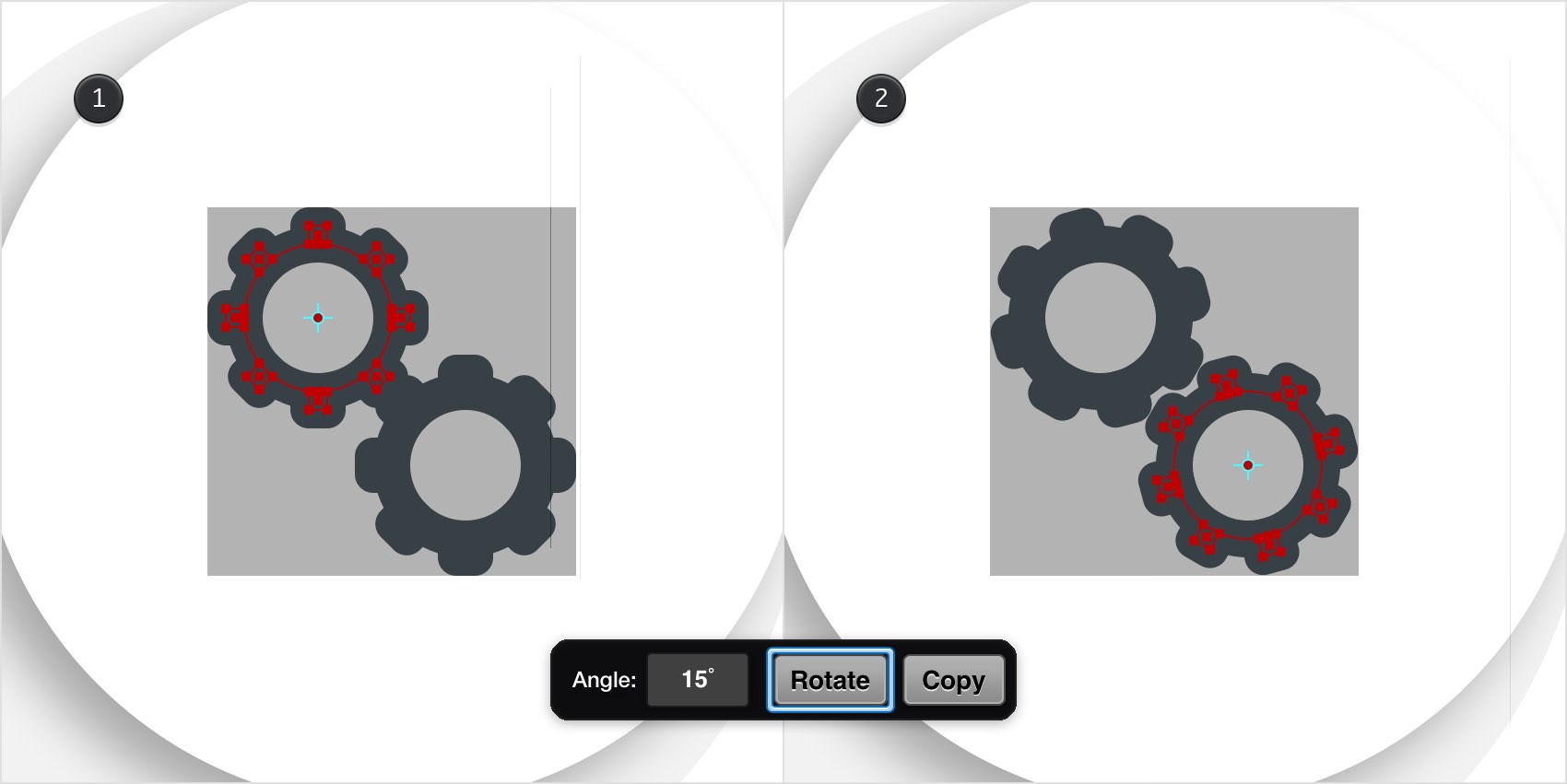

Select your top group and pick the Rotate Tool. Set the Angle to 15 degrees and then tap that Rotate button. Select the other group and do the same thing.

Step 32

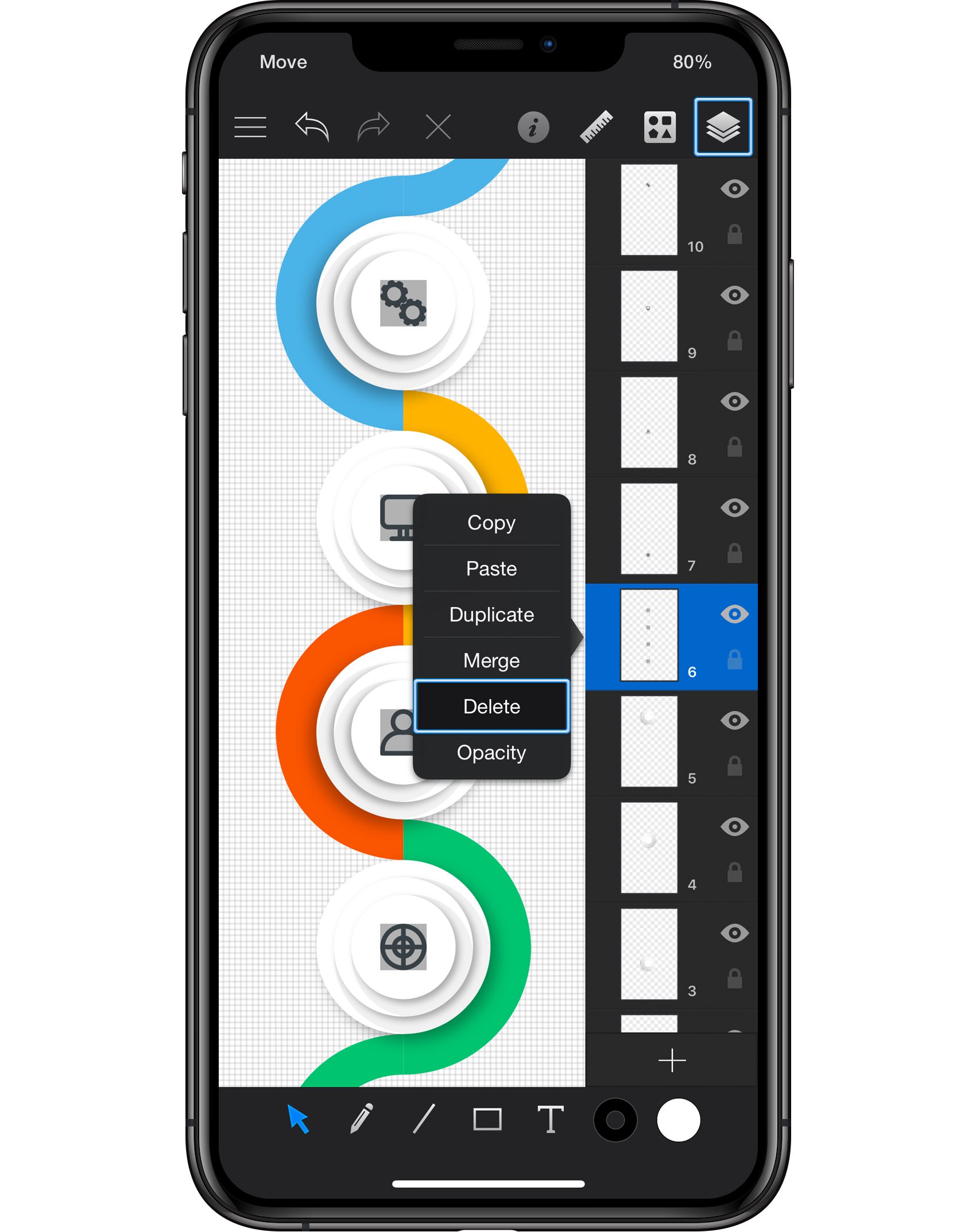

Focus on the Layers panel, select layer #6 (the one with the black squares) and delete it.

Step 33

Go to the Layers panel and add a new layer. Drag it in the top of the panel and make sure that it stays selected.

Again, you will need a grid every 5 px. Return to the Grid & Rulers pane and enter 5 px in both Spacing boxes.

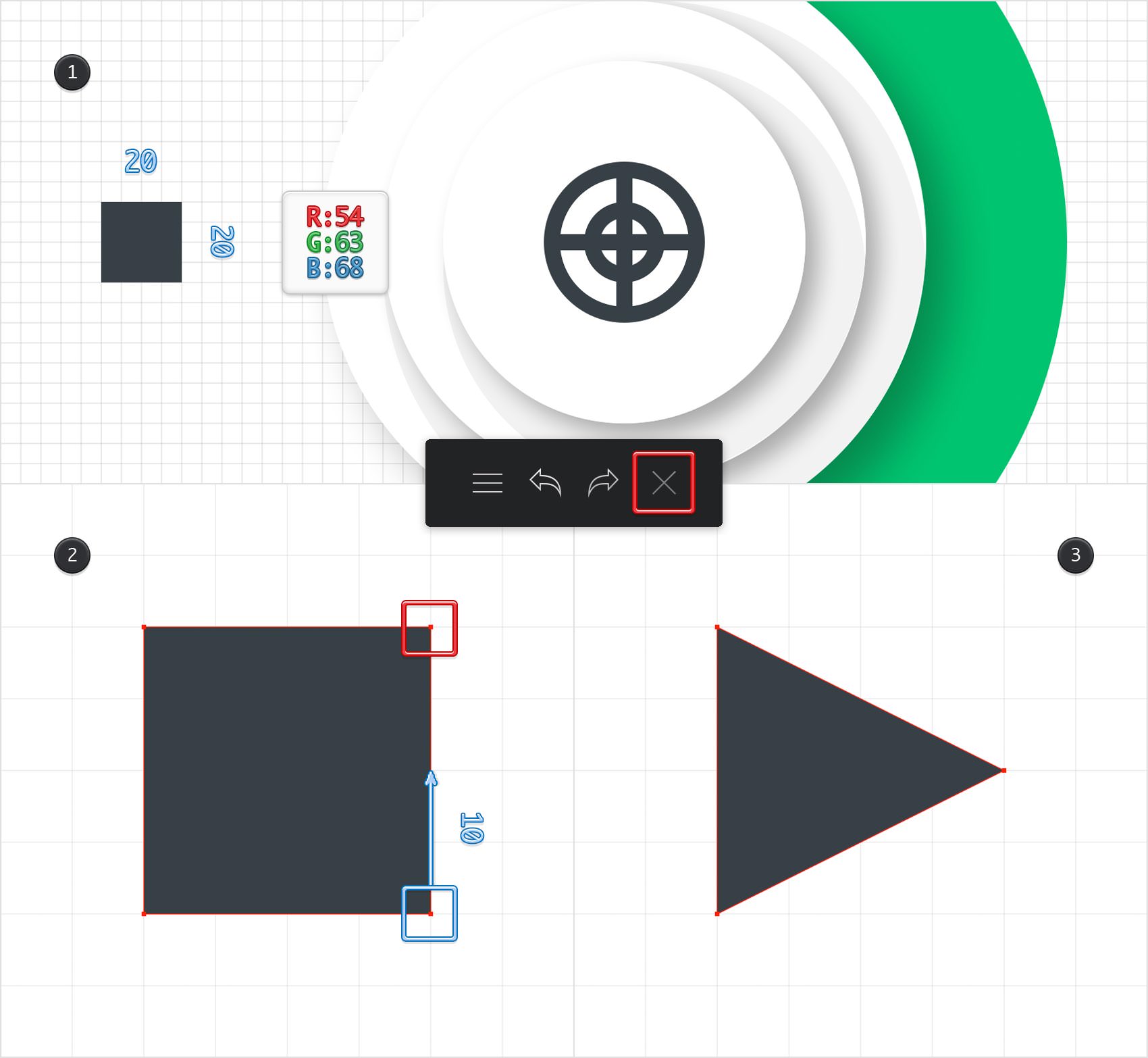

Pick the Rectangle Tool and create a 20 px square. Fill this new shape with R=54 G=63 B=68 and place it as shown in the first image. Keep focusing on this square and pick the Path Selection Tool . First, select the top anchor point and remove it using the Delete button from the Titlebar. Next, select the bottom anchor point and drag it 10 px up. In the end, your square should turn into a triangle, as shown in the third image.

Step 34

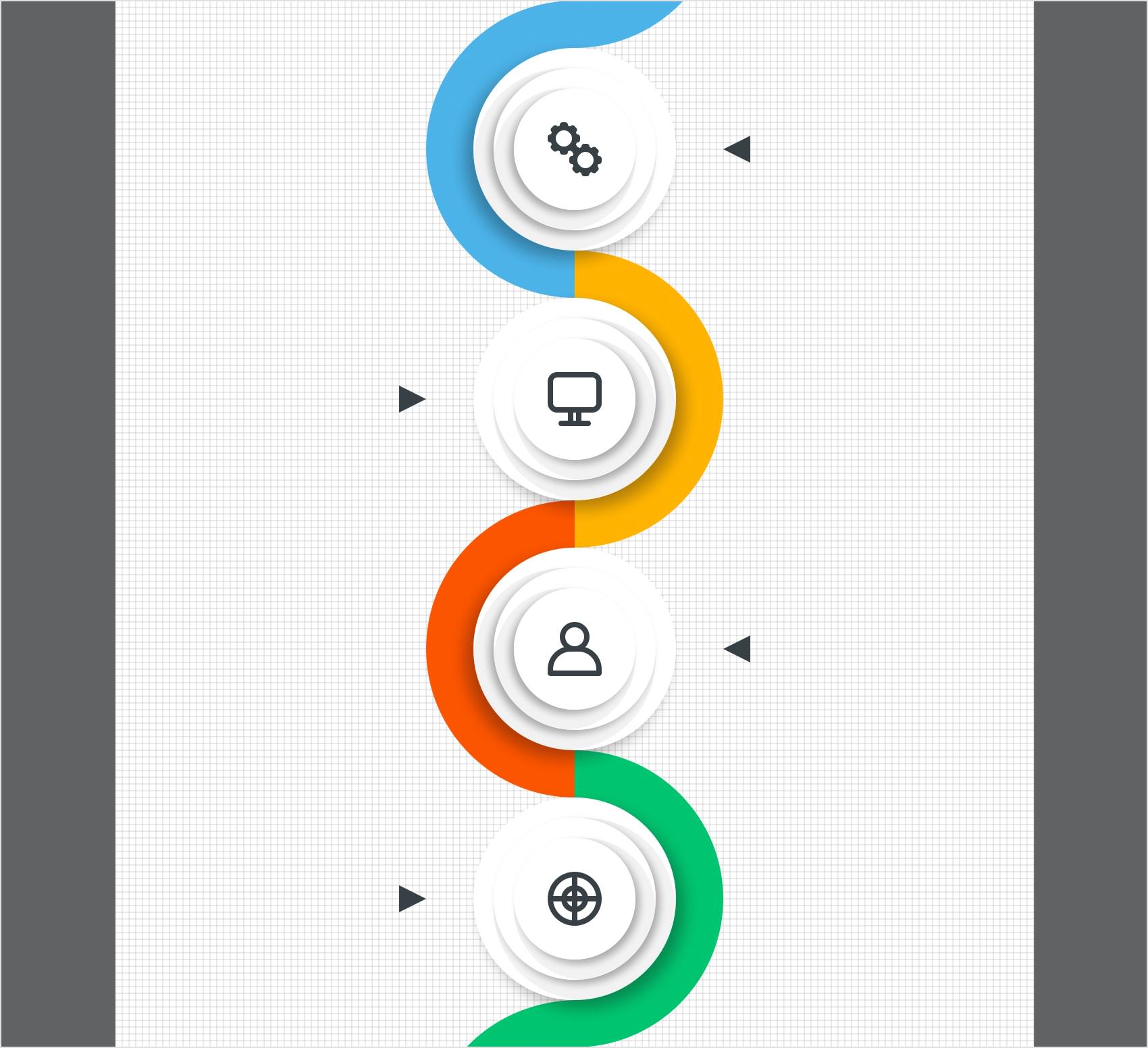

Make three copies of your triangle. Select two of these copies and rotate them 180 degrees. Place the three copies as shown in the following image.

Step 35

Pick the Text Tool and double-tap inside that new field. Select the Futura font and change the Style to Bold. Set the Size to 15 and the Text Alignment to Centered, and then add the "STEP 01" piece of text.

Make sure that your piece of text stays selected. First, change its color R=54 G=63 B=68 and then open the Text pane from the Appearance panel. Set the Line Spacing to 0.9 and then return to your canvas.

Use the Move Tool to make your text field 130 px wide and 20 px tall, and then place it as shown in the following image.

Step 36

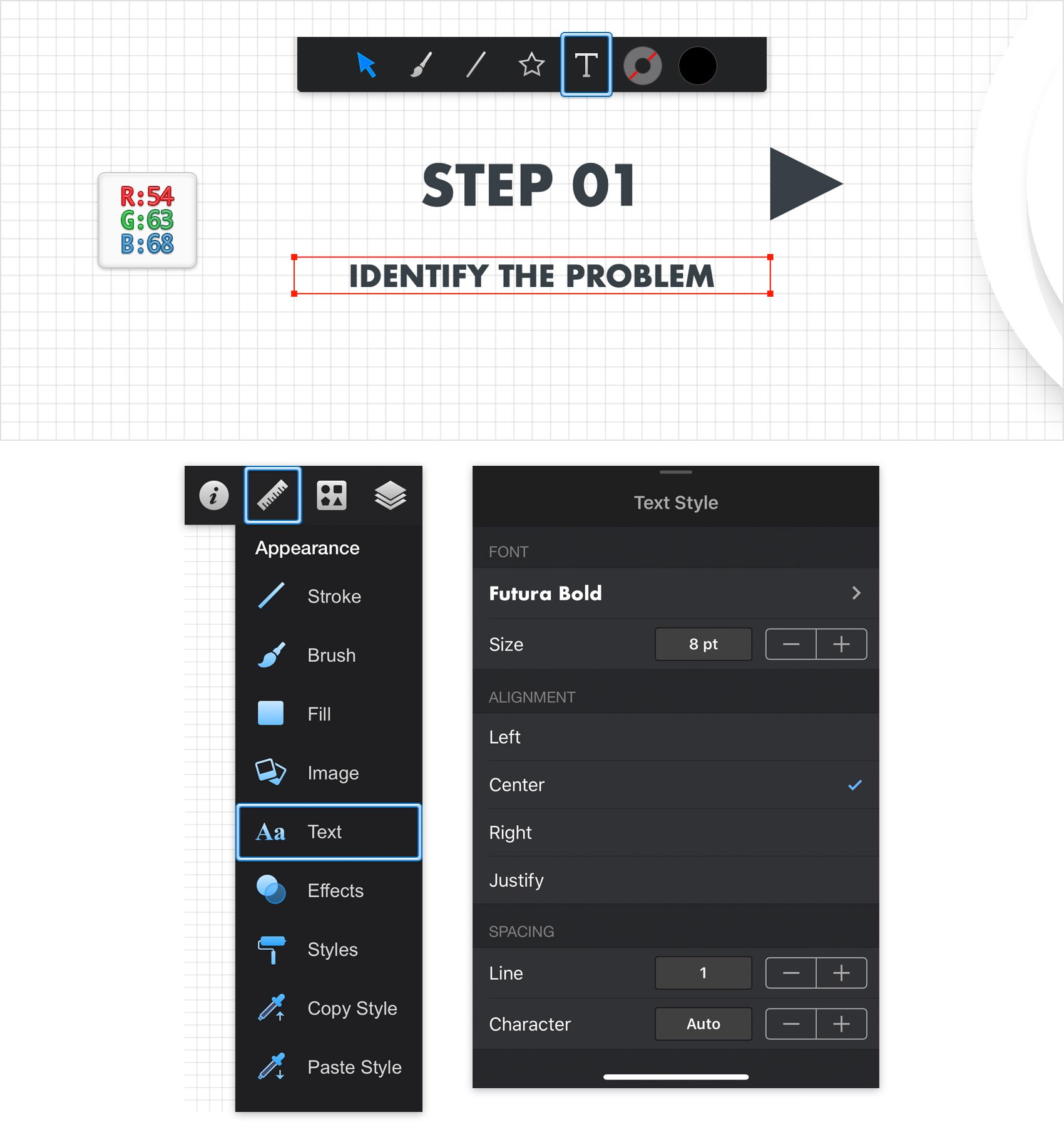

Add a second text field and lower the Size to 8 pt. Create a 130 x 10 px text field, place it as shown in the following image and add the "IDENTIFY THE PROBLEM" piece of text. Don't forget to set the Line Spacing to 0.9.

Step 37

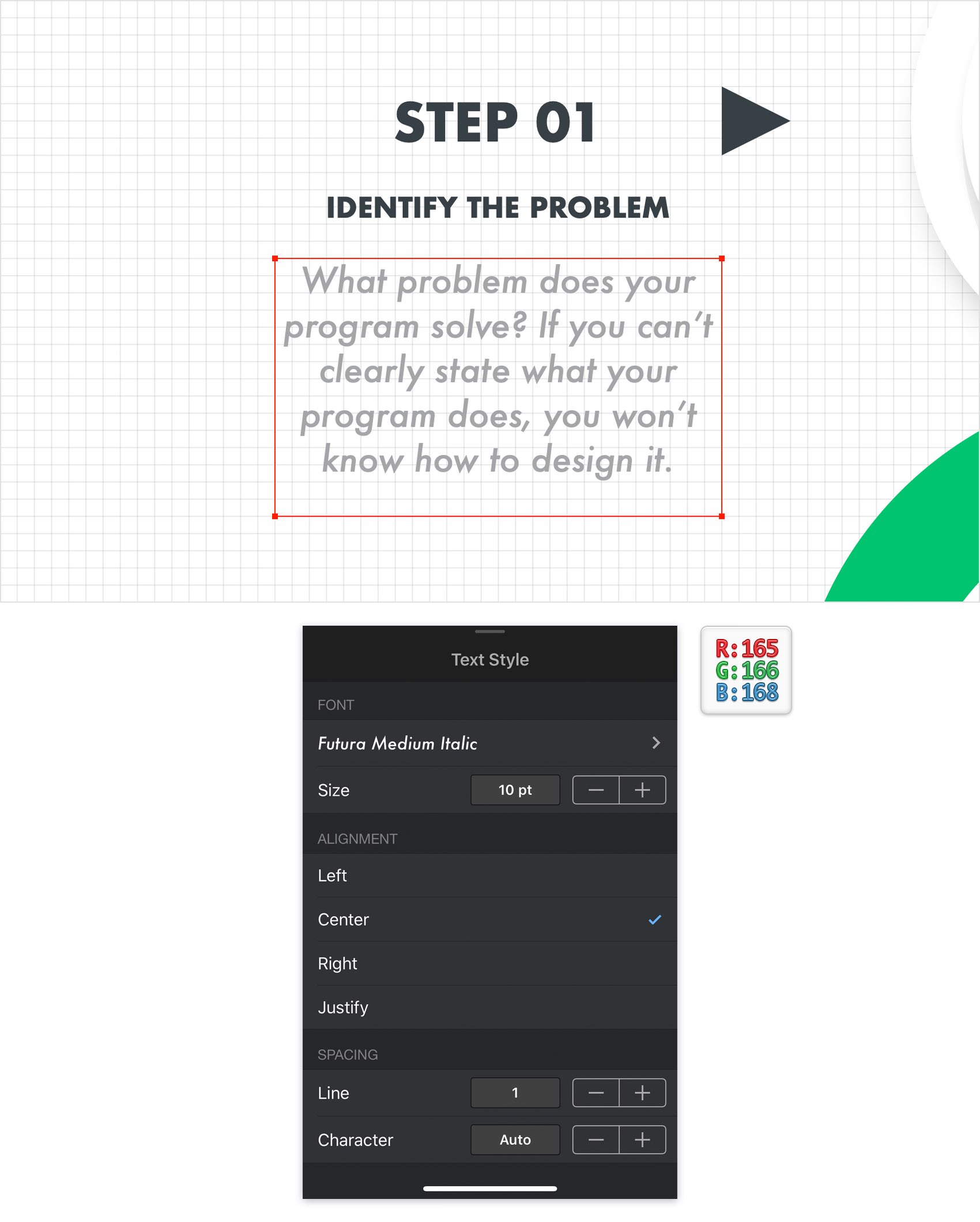

Ad a third text field, change the Style to Medium Italic and increase the Size to 10 pt. Change the color to R=165 G=166 B=168 and then create a 130 x 75 px text field. Place it as shown in the following image and add the text shown below.

Step 38

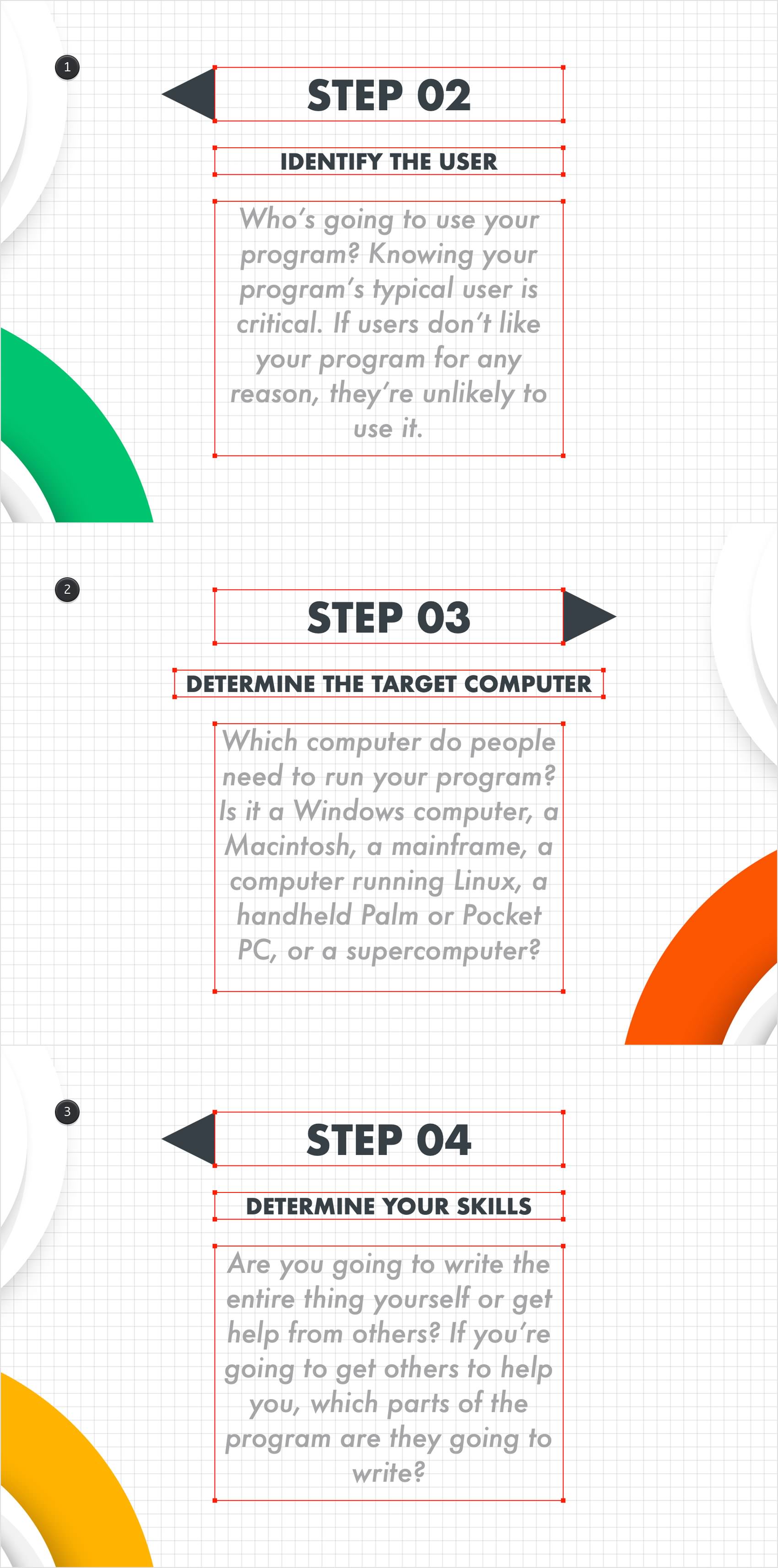

Multiply your text fields, place the copies as shown below and don't forget to replace their content.

Step 39

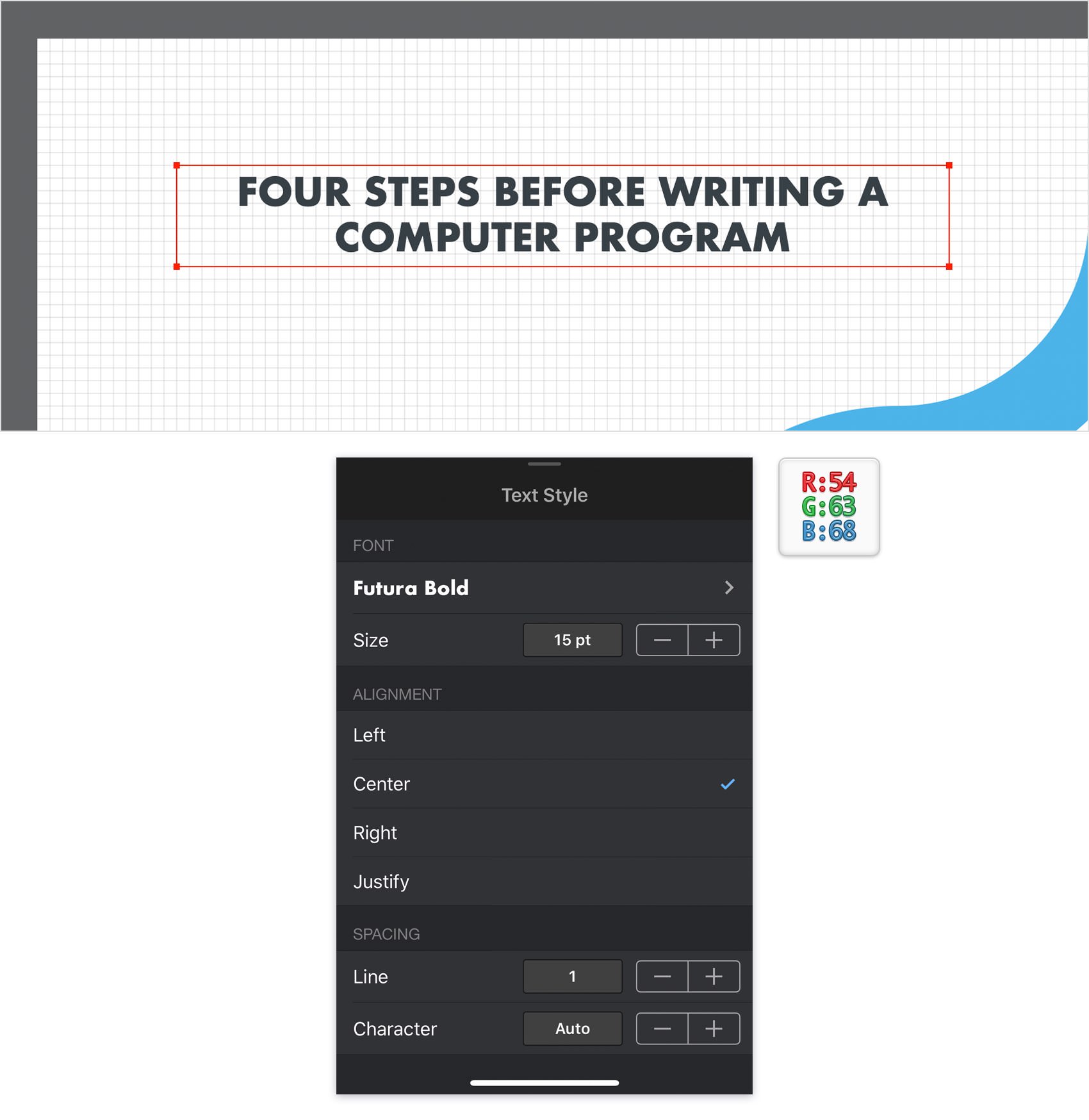

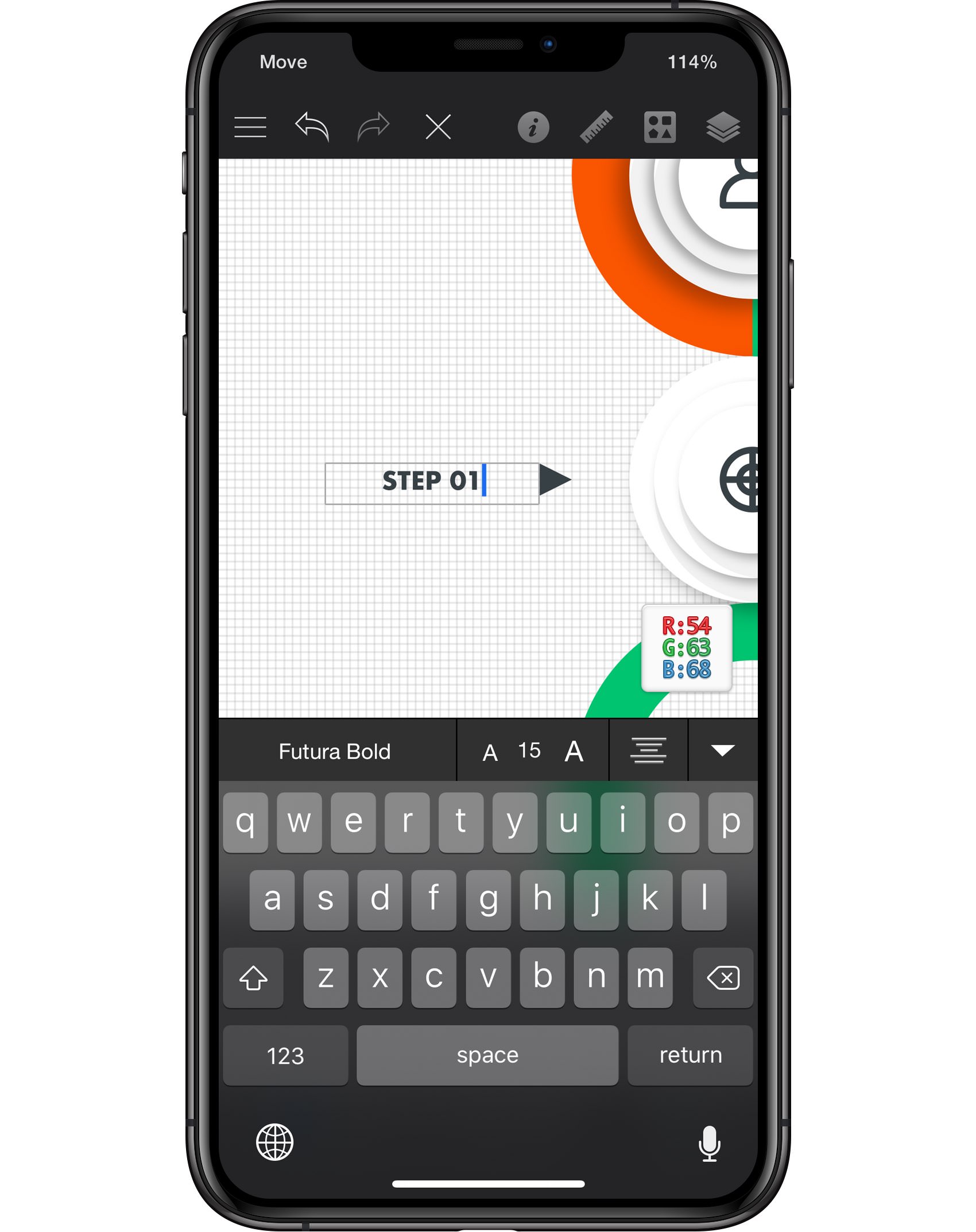

Add a new text filed, set the Style to Bold and increase the Size to 15 pt. Change the color back to R=54 G=63 B=68 and then add the text shown below. Resize your text field to 305 x 40 px and place it as shown in the following image.

Step 40

Go to the Layers panel and add one last layer. Drag it to the bottom of the panel and make sure that it stays selected.

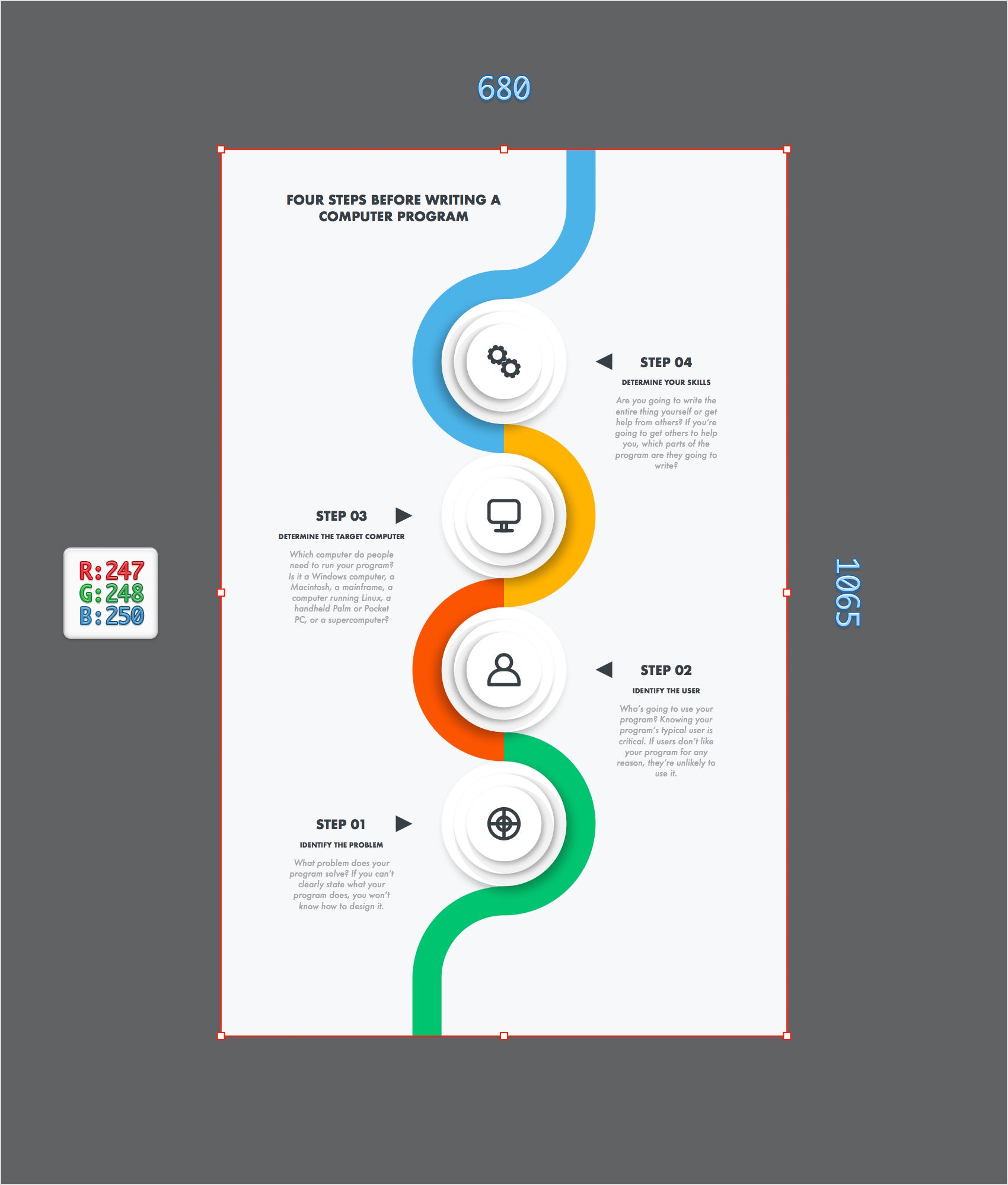

Pick the Rectangle Tool and create a 680 x 1065 px shape. Fill this rectangle with R=247 G=248 B=250 and make sure that it covers your entire canvas.

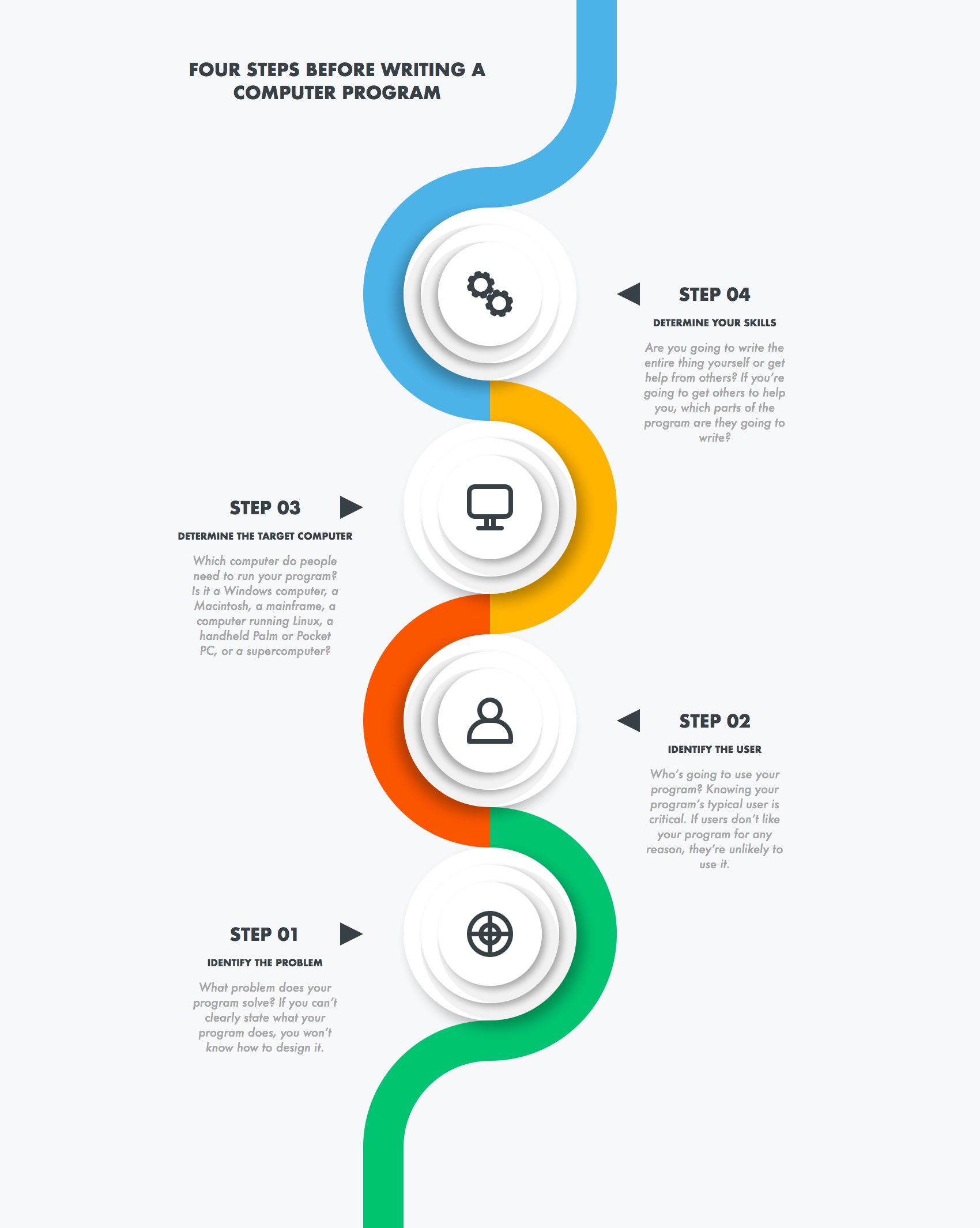

Finished Design

Congratulations, you've finished the tutorial!

Hope you've enjoyed learning some of the techniques and processes presented in these steps. As always, feel free to adjust the final design and make it your own.
